Description

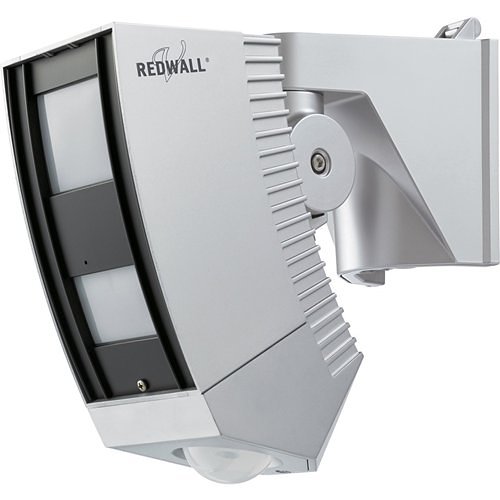

The REDWALL SIP series consists of advanced volumetric outdoor PIR sensors, engineered to integrate seamlessly with CCTV surveillance systems by directing camera focus to specific intrusion zones. These sensors exhibit remarkable stability in challenging outdoor environments, boasting a minimal false alarm rate, making them an essential component for reliable event-triggered security setups. The SIP-4010/5 model offers a detection coverage of 40m by 10m, supplemented by a 6x9m creep zone, making it perfect for monitoring elongated and broad areas.
Designed specifically to activate CCTV systems, the REDWALL SIP series can be connected to PTZ or fixed dome cameras, automatically initiating the system upon detecting intrusions. The SIP-4010/5 features three distinct detection zones—far, near, and creep—with customizable sensitivity, ensuring optimal camera preset activation to capture the best possible footage for on-site security personnel or remote monitoring centers.
Built to withstand harsh environmental conditions and deter vandalism, the SIP PIR sensors automatically adjust sensitivity based on surrounding temperature and light levels and come with an IP65 rating. They are housed in durable polycarbonate, equipped with an accelerometer to detect tampering, and feature active infrared antimasking measures.
Applications:
– Building Approaches
Key Features:
– 40x10m intelligent PIR for approach monitoring
– Engineered to activate CCTV systems
– Three independent detection zones: far, near, creep
– Active infrared antimasking and vandal-resistant design
