Description

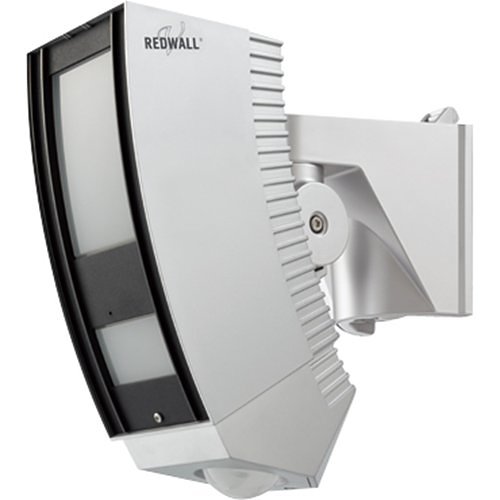

The SIP-5030 motion sensor delivers a comprehensive wide-angle detection solution ideal for expansive outdoor areas. Its intelligent detection system dynamically adjusts sensitivity by analyzing environmental data, such as temperature and illuminance. Additionally, the SIP-5030 incorporates a built-in PIR detector dedicated to monitoring the creep zone, which features an independent output distinct from the primary channel. The main output is designed to activate the video surveillance system, while the creep zone output ensures unit protection. On the other hand, the SIP-100 offers a long-range detection capability of up to 100 meters (300 ft.) and includes three distinct outputs: two for differentiating between distant and proximal areas and a third for creep-zone detection. These multiple outputs facilitate seamless integration with video transmission systems and PTZ camera controls. The detection angle for the SIP-5030 and SIP-100 can be finely tuned to align perfectly with the camera’s field of view, enhancing overall surveillance effectiveness. Furthermore, the units boast a creep zone detector that extends detection coverage beneath and around the device. Both the SIP-5030 and SIP-100 are fortified with anti-vandalism features, including anti-rotation and anti-masking functionalities, to detect any attempts at tampering.
Key Features:
– Intelligent PIR Detection Technology: Automatic sensitivity adjustment based on ambient temperature and illuminance.
– Advanced Detection Algorithms: Utilizing Double Dual/One Quad pyroelements with patented Double Conductive Shielding for SIP-5030 and Double Quad pyroelements for SIP-100.
– Integrated Creep Zone Detector: Enhanced coverage through double dual pyro-elements.
– Robust Anti-Vandalism Capabilities: Anti-rotation enabled by a 3-axis accelerometer, anti-masking via photo-beam, and durable polycarbonate housing.
– Flexible Installation: Supported installation height up to 4 meters (13 ft.).
– Independent Sensitivity Selection: Tailored settings for creep, near, and far zone monitoring.
– Separate Outputs: SIP-5030 offers independent N.C. and N.O. outputs for the main area; SIP-100 provides 2 x N.C. and N.O. independent outputs for near and far areas.
– Customizable Alarm Interval Settings: Allows adjustments to meet specific security needs.
