Description

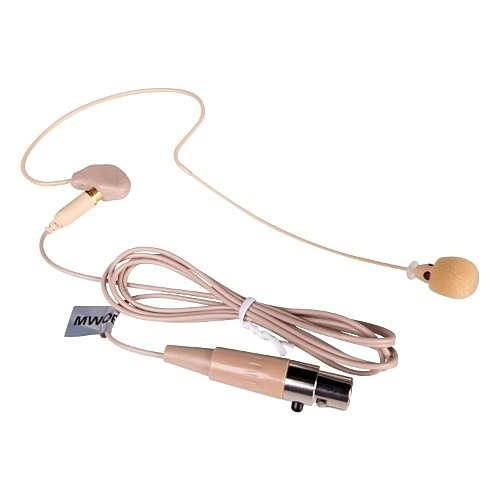

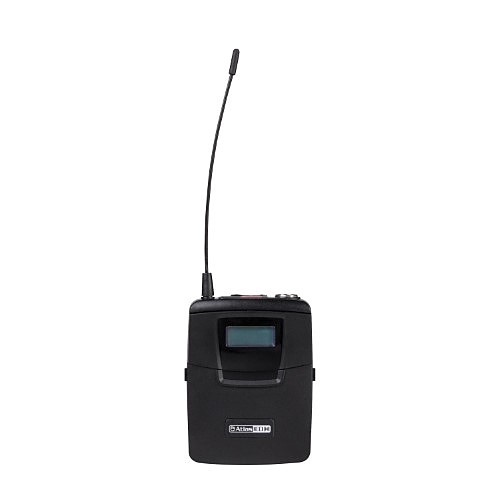

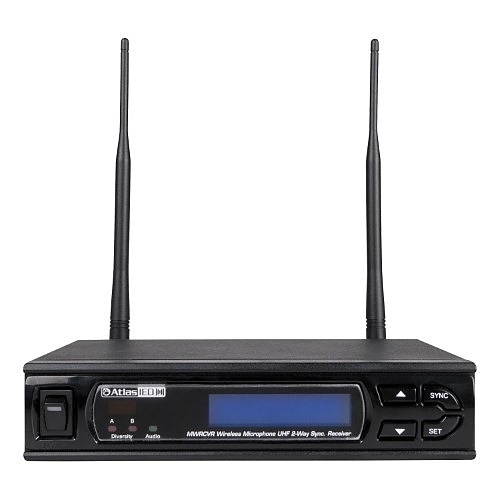

The AtlasIED MW100BP-OE is a comprehensive wireless audio solution designed for diverse acoustic environments, including educational facilities, corporate meeting spaces, lecture theaters, and live audio events. This state-of-the-art wireless microphone system features a robust wireless receiver (MWRCVR), a versatile beltpack transmitter (MWBPT), and an ergonomic over-ear microphone (MWOEM). To ensure optimal performance, the kit also includes essential antennas, cables, and a power supply. The MWRCVR operates in the 25MHz UHF frequency band, offering 100 selectable channels and leveraging innovative 2-way communication technology for stable and reliable signal transmission. It supports both balanced XLR output and unbalanced 1/4″ line output connectivity, enabling seamless integration with various audio amplification systems. The receiver is equipped with a switch to toggle between mic and line input, while its dual antenna configuration guarantees superior reception quality. The MWBPT transmitter connects effortlessly to the MWOEM over-ear microphone and can be powered by either standard alkaline or rechargeable NiMH AA batteries, offering up to 16 hours of continuous operation with NiMH batteries. A user-friendly LCD interface displays essential information such as channel, frequency, and battery status, simplifying the pairing process. MWRCVR’s technical specifications include a UHF frequency range of 566MHz – 585.8MHz, a switching bandwidth of 25MHz, and an operating range of 100 meters line of sight. The receiver boasts a sensitivity of -95dBm, a signal-to-noise ratio greater than 110dB, and a total harmonic distortion of less than 0.5%. The unit is powered by an adaptable 100-240V AC, 12V DC/1.6A power supply and measures 7.87″ x 5.91″ x 1.73″ (200mm x 150mm x 44mm), with a lightweight design weighing 1.39 lbs (0.63kg).
