Description

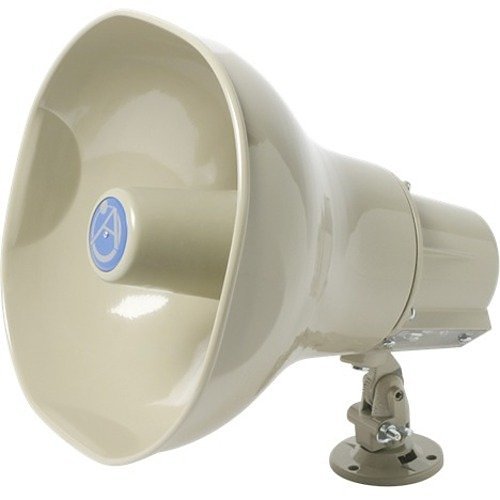

The AP-30TC loudspeaker is a high-performance, double re-entrant model designed to deliver 30 watts of continuous power, ensuring superior intelligibility and exceptional audio conversion efficiency. Operating within a frequency range of 300-12,000 Hz, this loudspeaker provides clear voice and signal communication with a sensitivity of 126dB at rated power.
Each AP-30TC loudspeaker is equipped with an integral transformer to accommodate diverse distributed audio system requirements. It features a flexible 3-way, 25, 70.7, 100V line transformer, adjustable via Atlas Sound’s exclusive Vari-Tap® Connect Center. This center includes a 7-position, watts/impedance selection switch for customizable settings. The Vari-Tap terminal, which is screwdriver adjustable, is designed to save labor and includes a protective cover with built-in strain relief.
The loudspeaker’s distinctive square bell design highlights the quality and reliability associated with Atlas Sound. Each unit includes an Omni-Purpose mounting bracket, allowing precise vertical and horizontal positioning with a single adjustment. This bracket accommodates installations on conventional surfaces or strap-mounting to I-beams or pillars. Made in the U.S., the AP Series ensures superior service reliability, featuring weather-resistant construction with metal components and matching ABS plastic, finished in standard grey epoxy or beige epoxy where specified.
