Description

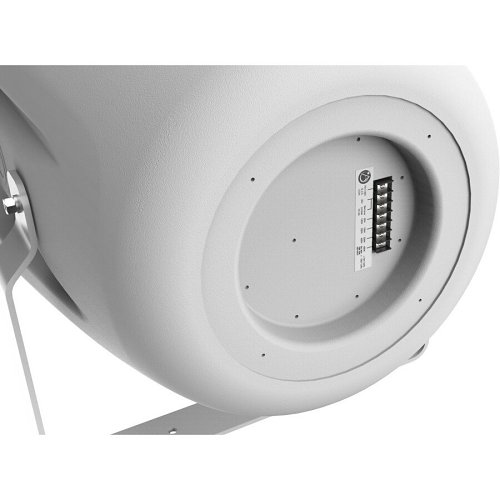

The FS12T-94 is a two-way, full-range loudspeaker system meticulously crafted to deliver outstanding voice and music performance, even in demanding environments that require weather resistance. Built to endure harsh weather conditions, this system assures enduring reliability. It features a 12″ low-frequency driver and a 1″ exit high-frequency compression driver, concentrically mounted on a high-directivity waveguide, offering 90° x 40° coverage and fine-tuned for optimal sound reproduction. The enclosure, made from molded linear low-density polyethylene (LLDPE), combines remarkable strength with lightweight properties. For convenient installation, the unit is equipped with a stainless steel U-bracket and fly-points. The integrated 70.7V transformer offers a low insertion loss and a comprehensive frequency response with power taps up to 400 watts, including a 4-ohm bypass option. To protect against the elements, the transformer is discreetly positioned beneath the rear cover. The speaker sports a UV-resistant “battleship grey” finish, ensuring durability over the years. Key features include suitability for a wide range of outdoor and indoor applications, an integrated 400-watt 70.7V transformer, constant directivity design for precise 90° horizontal by 40° vertical coverage, robust all-weather construction for sustained reliability across different seasons, a flexible mounting system for versatile installation angles, easy maintenance that allows transducers to be serviced on-site, and a neutral finish that effortlessly integrates into any environment.

Audio
Maximum Frequency Response17.60 kHz
Minimum Frequency Response80 Hz
RMS Output Power400W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlasIED
Manufacturer Part NumberFS12T-94
Product LineHorns
Product ModelFS12T-94
Product Name12" 2-Way Multipurpose Horn Loudspeaker System 90° x 40°
Product SeriesFS
Product TypeSpeaker

Miscellaneous
Country of OriginCN
FeaturesAll-Weather Construction, Easy Service Design, Four Eyebolt, Mounting Bracket
Package Contents 12" 2-Way Multipurpose Horn Loudspeaker System 90° x 40° 6 mm Stainless Steel U-Bracket Fly-Points

Physical Characteristics
ColorGray
Depth18.50"
DurabilityHeavy Duty, UV Resistant, Weather Resistant
Height19.6"
Product ColorBattle Ship Gray
Weight (Approximate)48 lb
Width18.5"

Product Information
Mount TypeSurface Mount

Technical Information
Crossover Type2-way
Impedance4 ohms
Sensitivity103 dB
Speaker Size12"

Warranty
Limited Warranty5 Year
