Description

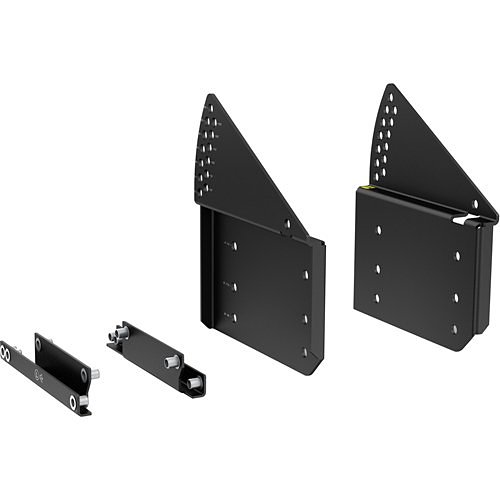

This kit is designed to securely attach to a subwoofer unit, supporting the installation of one or two RoomMatch full-range audio modules. It enables a flexible pitch angle adjustment ranging from 0 to 30 degrees downward, depending on the vertical coverage pattern of the module. The comprehensive pitch bracket system consists of a pitch plate connecting to the subwoofer unit and a mounting bar affixing the RoomMatch full-range audio modules. The package includes two (2) pitch plates, two (2) mounting bars for the RoomMatch full-range modules, four (4) M10 x 40 mm fasteners, and four (4) M10 x 30 mm fasteners. Additionally, installation of the pitch brackets necessitates using four (4) M10 x 30 mm fasteners (requiring a 15 mm socket) provided with the RoomMatch full-range modules. Total weight of the kit is 19 lbs (8.6 kg).
