Description

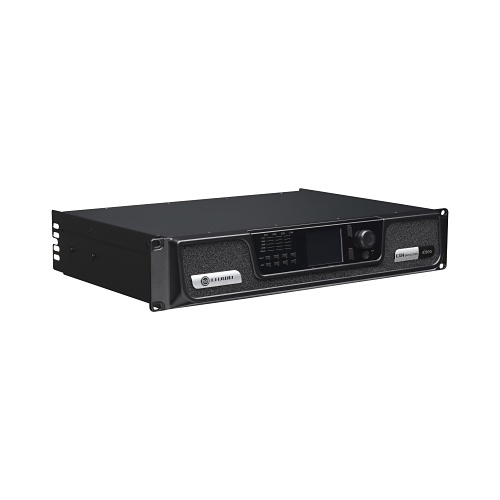

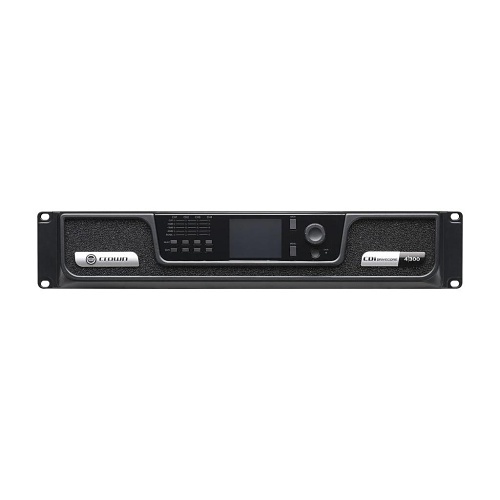

The CDi DriveCore Series represents a significant advancement in audio amplification technology, delivering a remarkable combination of high performance, comprehensive features, and exceptional value. Leveraging technology derived from our premier Installed Sound amplifiers, the CDi DriveCore 4|300 is designed to deliver streamlined functionality suitable for a wide range of small to medium-sized installations, including restaurants and retail environments. Built with user-friendliness in mind, the 4-channel 4|300 amplifier features network control and monitoring, advanced DSP capabilities, an intuitive front-panel interface, and the ability to drive speaker loads up to 100Vrms without the need for a transformer. Additionally, the CDi DriveCore series is equipped with pre-loaded JBL speaker tunings to expedite and simplify the installation process.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response20 Hz
RMS Output Power1200W
Total Harmonic Distortion (THD)0.4%

Energy & Performance
Operating Power Consumption350W

General Information
Brand NameCrown by Harman
ManufacturerHarman International Industries, Inc
Manufacturer Part NumberCRN-CDI4X300VMUS
Product LineCDi DriveCore
Product Model4|300
Product NameAnalog Input, 4 Channel, 300W Per Output Channel
Product TypeAmplifier

Miscellaneous
Environmentally FriendlyYes
FeaturesDirect Drive 70/100Vrms Output, DriveCore Technology, GPIO/AUX Port, Network Control and Monitoring

Network & Communication
EthernetYes

Physical Characteristics
Depth12.3"
Height3.5"
Weight (Approximate)16.13 lb
Width19"

Technical Information
Audio Channels4
Impedance8 ohms

Warranty
Limited Warranty3 Year
