Description

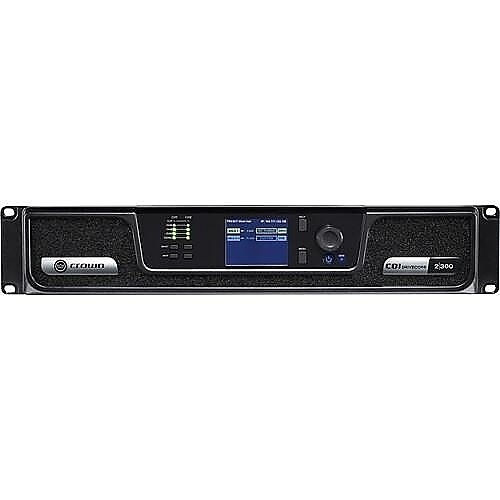

The 300W Crown Audio CDi 2|300 2-Channel DriveCore Series Power Amplifier harnesses advanced technology from the renowned Crown DriveCore Install series, delivering a compelling blend of high-performance, robust features, and cost-effectiveness. This amplifier is ideally suited for small- to medium-sized venues such as restaurants and retail outlets. The innovative DriveCore integrated circuit significantly reduces component count, minimizing variability in component values and enhancing reliability, resulting in outstanding audio fidelity from a streamlined design. This 2-channel amplifier is user-friendly and boasts network control and monitoring capabilities, an advanced DSP circuit, and an intuitive front-panel interface. It is adept at powering up to 100Vrms speaker loads without necessitating a transformer and includes pre-loaded JBL speaker tunings for rapid and hassle-free installations. The CDi 2|300 is equipped with an Ethernet port for integration with HARMAN HiQnet Audio Architect software, facilitating configuration and control over a standard TCP/IQ network. The rear panel is designed with terminal block inputs and barrier strip outputs for seamless connectivity.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response20 Hz
RMS Output Power600W
Total Harmonic Distortion (THD)4.0000000000000001E-3

Certifications
TAA CompliantNo

Energy & Performance
Operating Power Consumption300W

General Information
Brand NameCrown by Harman
ManufacturerHarman International Industries, Inc
Manufacturer Part NumberNCDI2X300-U-US
Product LineCDi DriveCore
Product Model2|300
Product NameHARMAN-NCDI2X300-U-US-Crown 2|300 Amplifier-600 W RMS-2 Channel -0.4% THD-20 Hz to 20 kHz-300 W-Ethernet
Product SeriesCDi
Product Type2-Channel Analog Input Amplifier

Miscellaneous
Environmental CertificationWEEE
Environmentally FriendlyYes
Features20 device presets 1 factory and 19 user, 96 kHz/32-bit floating-point signal processing, Color LCD and front-panel user interface for amplifier configuration, control, and monitoring, Digital signal processing input/output EQ filters, crossover, input/output delay, LevelMAX limiters, DriveCore Technology patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption, and improved reliability, Monitoring and control over TCP/IP, Programmable GPIO general purpose input/output control port, Support for importing of FIR filter coefficients, Supports configuration and control using HiQnet Audio Architect, Universal power supply with PFC for reduced current draw and industry-leading efficiency

Network & Communication
EthernetYes

Physical Characteristics
ColorBlack
Depth12.3"
Height3.5"
Weight (Approximate)14.56 lb
Width19"

Technical Information
Audio Channels2
Impedance4 ohms

Warranty
Limited Warranty3 Year
