Description

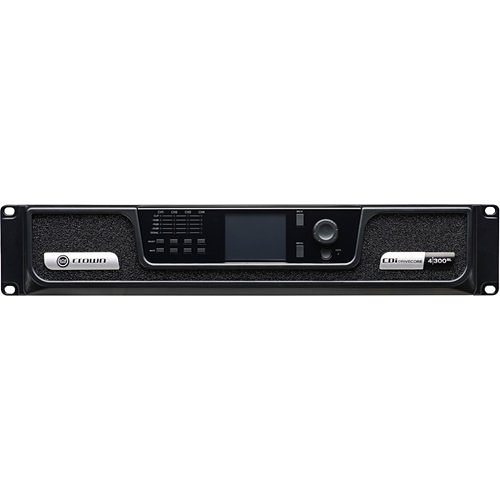

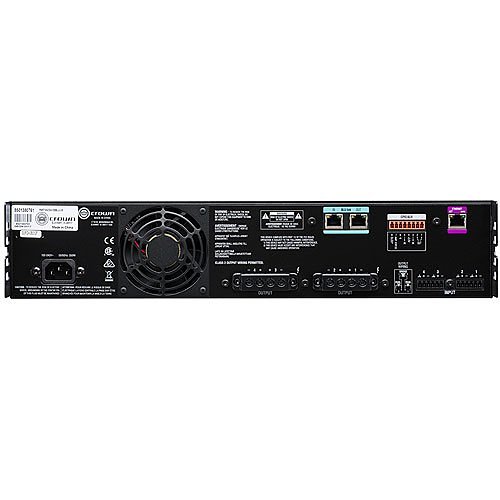

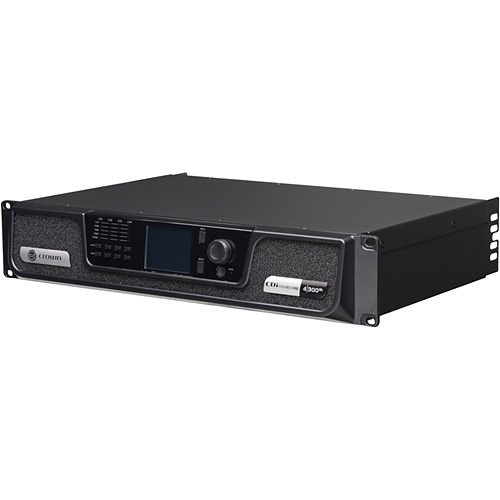

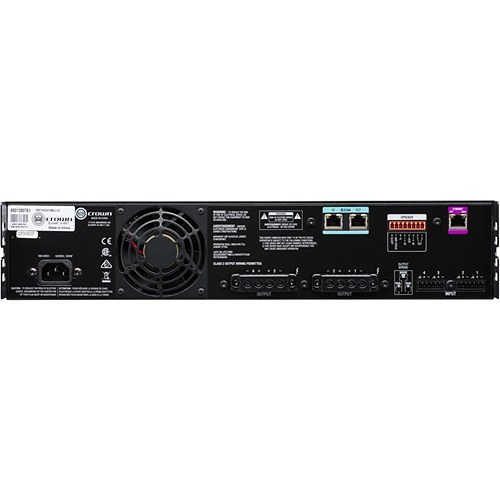

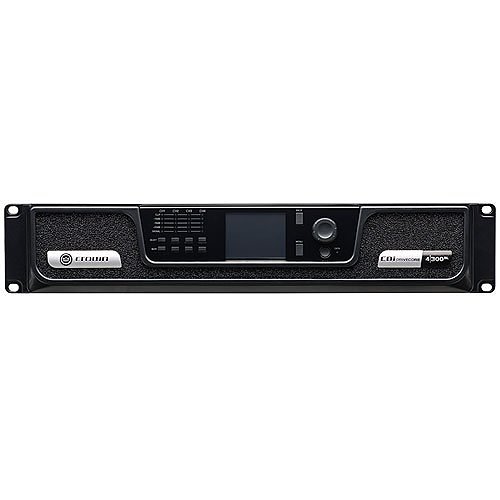

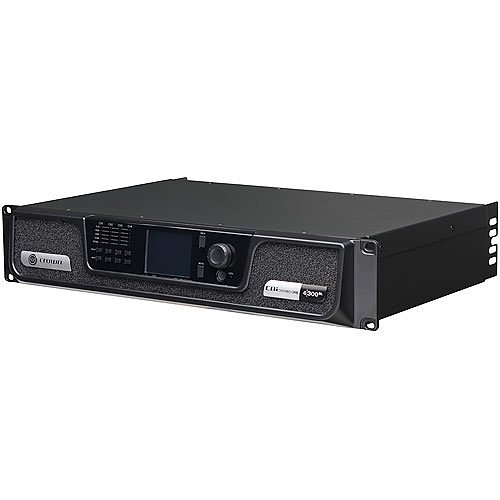

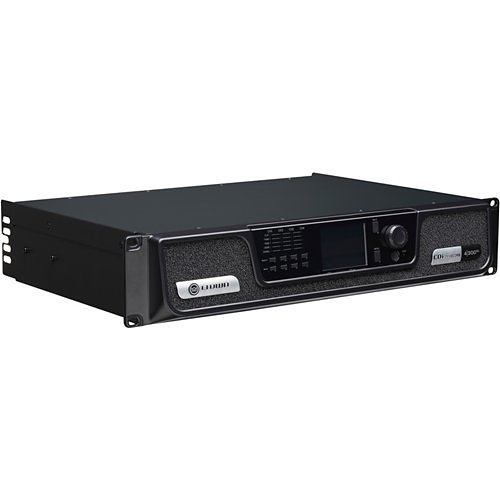

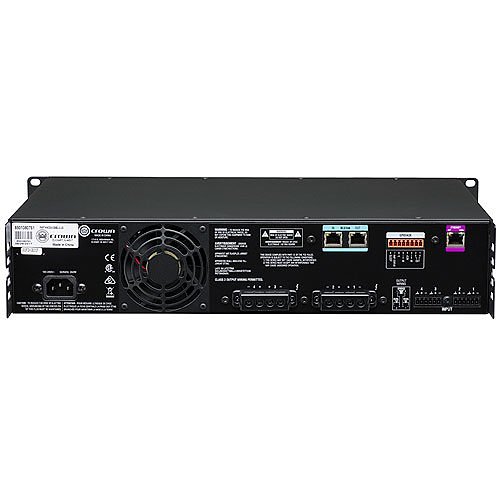

The CDi DriveCore Series represents a major advancement in amplification technology, combining exceptional performance, comprehensive features, and cost-effectiveness. Drawing from our premier Installed Sound amplifier technology (Crown DriveCore Install series), the CDi DriveCore 4|300BL is engineered for versatility in a wide range of small to medium-sized installations, including restaurants, retail environments, and more. This 4-channel amplifier is designed for user-friendly operation across various applications, featuring network control and monitoring, advanced DSP capabilities, an intuitive front-panel interface, and the ability to drive up to 100Vrms speaker loads without a transformer. Moreover, the 4|300BL is equipped with BLU link, facilitating the transmission and reception of channels via HARMAN’s digital audio BUS. The entire CDi DriveCore series is pre-configured with JBL speaker tunings to streamline and expedite the installation process.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response20 Hz
RMS Output Power1200W
Total Harmonic Distortion (THD)0.4%

Certifications
TAA CompliantNo

Energy & Performance
Operating Power Consumption350W

General Information
Brand NameCrown by Harman
ManufacturerHarman International Industries, Inc
Manufacturer Part NumberNCDI4X300BL-U-US
Product LineCDi DriveCore
Product Model4|300BL
Product NameCDi DriveCore 4|300BL Amplifier
Product SeriesCDi
Product TypeAmplifier

Interfaces/Ports
Number of Analog Audio Inputs2
Number of Audio Inputs4
USBNo

Miscellaneous
Environmental CertificationWEEE
Environmentally FriendlyYes
FeaturesAdvanced DSP on Inputs and Outputs, Color LCD Panel for Control and Monitoring, DriveCore Technology, Monitor and Control over Standard TCP/IP, Remarkable Performance and Reliability, Supports HiQnet Audio Architect Software, Works in 70/100V and Low Impedance

Network & Communication
EthernetYes

Physical Characteristics
ColorBlack
Depth12.3"
Height3.5"
Weight (Approximate)16.13 lb
Width19"

Power Description
Input Voltage100V AC, 240V AC

Product Information
Length12.5"

Technical Information
Audio Channels4
Impedance8 ohms

Warranty
Limited Warranty3 Year
