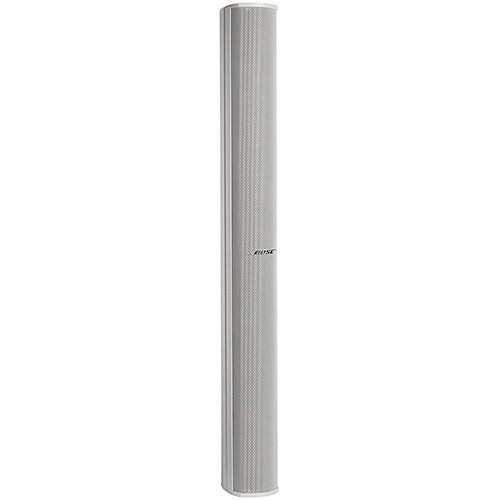

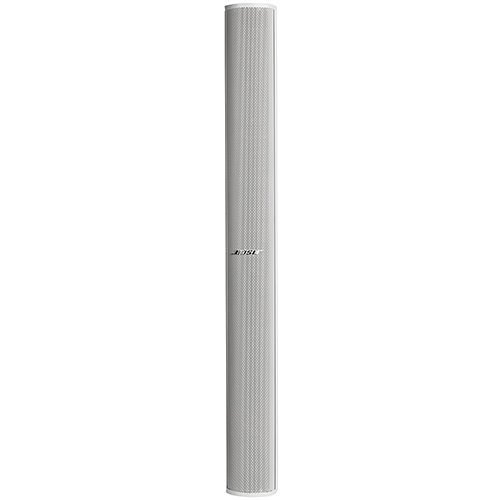

Bose Professional Panaray MA12EX Modular Column Line Array Loudspeaker, White

Brand: Bose Professional

Bose Professional Panaray MA12EX Modular Column Line Array Loudspeaker, White

Name: Bose Professional Panaray MA12EX Modular Column Line Array Loudspeaker, White
Brand: Bose Professional
SKU: 317302-0200
Availability: InStock

in stock

Special Order

$1,221.78

Elevate the bass to powerful levels with 150W RMS output, ensuring clear sound without distortion.
Experience deep lows and clear highs across a frequency response range of 75 Hz to 13 kHz.
8 Ohm impedance ensures efficient power usage, delivering enhanced audio output from your speakers.
Optional mounting brackets simplify the installation process for single, double, or triple-stack line array modules.
Twelve 2.25" (64 mm) full-range drivers are arranged in a vertical line array, offering wide horizontal sound coverage and precise vertical pattern control.
The modular design supports stacking multiple enclosures in a line array configuration, enhancing vertical pattern control, improving sound "throw" distance, and minimizing unwanted reflections from floors or ceilings.
The Articulated Array design provides broad 160-degree horizontal coverage with a 20-degree nominal vertical range for each module. The actual vertical coverage adjusts based on the number of modules in the line array configuration.
A frequency range extending down to 58 Hz supports full-range speech and light music reinforcement without the need for separate low-frequency speakers.

SKU: 317302-0200 Categories: Commercial Audio, Pro AV, Pro Speakers Brand: Bose Professional

Description

The Bose Panaray MA12EX is an advanced full-range modular line array loudspeaker engineered for exceptional vocal clarity in challenging acoustic environments. Its sleek column design integrates seamlessly with diverse interiors. The “EX” model incorporates Bose’s Articulated Array technology for expansive 160° horizontal sound dispersion and features weather-resistant components for reliable outdoor performance.

Audio
Maximum Frequency Response	13 kHz
Minimum Frequency Response	75 Hz
Number of Speakers	1
PMPO Output Power	600 W
RMS Output Power	150W

General Information
Brand Name	Bose Professional
Manufacturer	Bose Corporation
Manufacturer Part Number	317302-0200
Product Line	Panaray
Product Model	MA12EX
Product Name	Panaray MA12EX Full-range Modular Line Array
Product Series	MA
Product Type	Speaker

Miscellaneous
Features	Articulated Array, Modular design
Package Contents	Installation Guide, MA12EX Loudspeaker

Physical Characteristics
Application/Usage	Outdoor
Color	White
Depth	5.50"
Durability	Weather Resistant
Height	38.8"
Product Color	White
Speaker Installation	Outdoor
Weight (Approximate)	21 lb
Width	4.1"

Product Information
Length	42.36"

Technical Information
Full Range Driver Size	2.25"
Impedance	8 ohms
Sensitivity	87 dB
Speaker Size	2"
Wireless Speaker	No
Woofer Driver Size	2.25"

Warranty
Limited Warranty	5 Year
