Description
Designed to meet the demands of zone-fill coverage and high-SPL foreground music applications, Bose ArenaMatch Utility loudspeakers deliver the renowned tonal balance of ArenaMatch array systems in a more compact form. Equipped with the same EMB2S compression driver found in ArenaMatch arrays, these loudspeakers provide consistent audio quality and are rated for direct-exposure outdoor environments. Ideal for use in sports stadiums, arenas, outdoor entertainment venues, and other outdoor settings, they deliver clear, powerful sound across a range of areas, including niche venues like breweries and fairgrounds, as well as larger spaces such as resorts and outdoor shopping centers.
The AMU105 is a highly compact ArenaMatch Utility model tailored for outdoor scenarios requiring superior audio from a discreet loudspeaker. It offers expansive and uniform coverage with a 100° x 100° constant-directivity high-frequency horn, spanning a frequency range of 100 Hz to 18 kHz, achieving a peak SPL of 118 dB, and includes a Bose LF5 5.25-inch woofer for deep vocal support.
Key Features
Enhance zone-fill capabilities alongside ArenaMatch array systems, delivering robust, clear sound with consistent tonal balance through EMB2S compression drivers in each unit.
Optimize high-level foreground music experiences in any outdoor environment.
Rugged outdoor installation with an IP55 weather rating, featuring a three-layer stainless steel grille, water-resistant woofer cone coating, industrial-grade polyurethane exterior, and protective molded input cover.
Flexibility in configuration with standard 70/100V transformer inputs and passive crossovers equipped with optimized filters for consistent frequency and polar responses.
Streamline system integration with Bose Professional solutions, including PowerMatch amplifiers and ControlSpace DSPs.

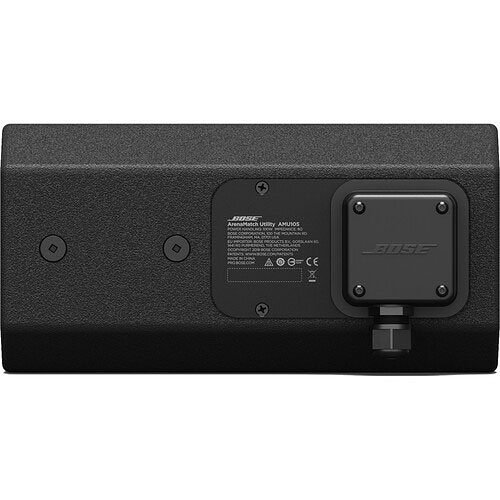

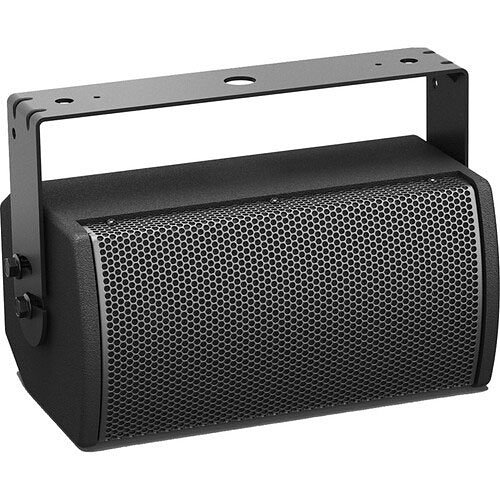

Simple mounting with an included stainless-steel U-bracket; rear enclosure panel features M8 threaded inserts for compatibility with third-party bracket accessories.
Wide and uniform acoustic coverage ensured by a 100° x 100° constant-directivity high-frequency horn, suitable for both horizontal and vertical installations.
Exceptional performance for demanding applications with a frequency response of 100 Hz to 18 kHz and a maximum peak SPL of 118 dB.
Extended low-frequency support with a Bose LF5 5.25-inch woofer, incorporating a 1.5-inch long-excursion voice coil, extending response to 90 Hz.
EN 54-24 Certified: Compliant with EN 54-24: 2008, standard for loudspeakers in voice alarm systems used for fire detection and alarm purposes in buildings.
