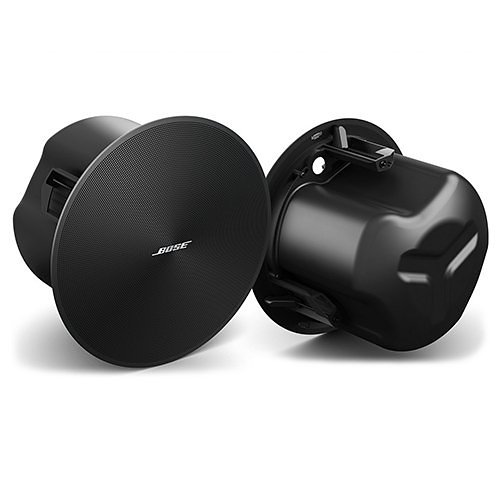

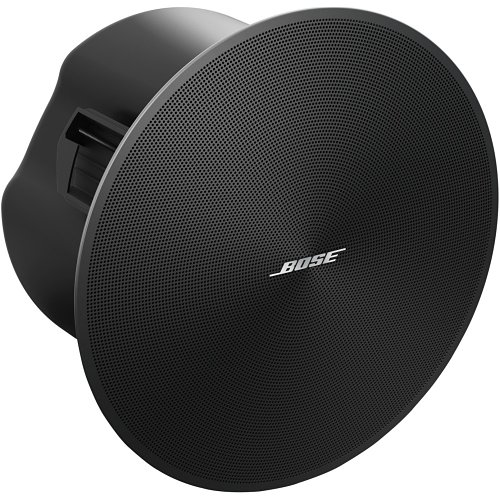

Bose Professional DesignMax DM5C 2-Way In-Ceiling 60W Loudspeaker with 5.25″ Woofer and 1″ Coaxial Tweeter, Pair, Black

Name: Bose Professional DesignMax DM5C 2-Way In-Ceiling 60W Loudspeaker with 5.25" Woofer and 1" Coaxial Tweeter, Pair, Black
Brand: Bose Professional
SKU: 829683-0110
Availability: InStock

in stock

In Stock

$444.06

Integrate DesignMax loudspeakers seamlessly into any audio installation, regardless of size — offering 12 versatile models ranging from 2" low-profile speakers to 8" high-SPL compression-driver loudspeakers, including options for outdoor settings.
Experience deep bass and crystal-clear highs with coaxial two-way drivers, eliminating the need for DSP or EQ adjustments. For enhanced audio quality, leverage select DSPs and amplifiers to activate loudspeaker EQ and SmartBass processing, delivering optimal performance at every sound level.
Achieve uniform audio coverage across the space with the Dispersion Alignment system, aligning the woofer's coverage with the tweeter's pattern for consistent aural experience.
Seamlessly integrate with any interior design using sleek form factors, minimal-bezel grilles available in black or white, and logos that can be removed for a customized appearance.

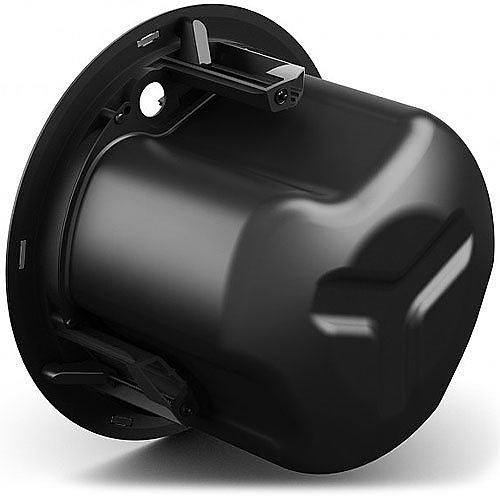

Minimize installation time with the innovative QuickHold mounting system, reducing stress, complexity, and the risk of damage during setup.

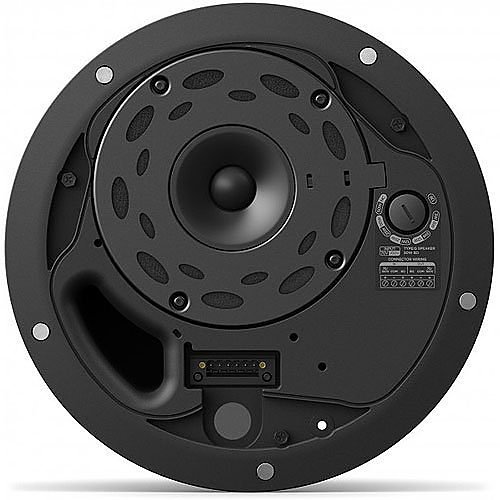

Simplify installation using industry-standard accessories — all models come with Euroblock connectors; in-ceiling models include plenum-rated back cans, tile bridges, and front-access audio wiring for easier setup and troubleshooting.
The two-way in-ceiling speakers deliver superior sound coverage.
Enjoy every nuance of audio with a frequency response range of 65 Hz-20 kHz.
Maximize speaker output with 8 Ohm impedance, ensuring higher power extraction for increased acoustic performance.

SKU: 829683-0110 Categories: Commercial Audio, Pro AV, Pro Speakers Brand: Bose Professional

Description

**Product Overview**

DesignMax loudspeakers deliver exceptional sound quality and visual appeal for any commercial environment. Each 50-watt DesignMax DM5C loudspeaker is equipped with a two-way 5.25-inch woofer and a 1-inch tweeter, coaxially aligned using the Dispersion Alignment system, offering a frequency response from 65 Hz to 20 kHz. These ceiling-mounted DM5C speakers can be easily installed with QuickHold mounting arms. Available in both black and white, DesignMax loudspeakers effortlessly blend with any interior design.

Audio
Maximum Frequency Response	20 kHz
Minimum Frequency Response	65 Hz
Number of Speakers	2

General Information
Brand Name	Bose Professional
Manufacturer	Bose Corporation
Manufacturer Part Number	829683-0110
Product Line	DesignMax
Product Model	DM5C
Product Name	DesignMax DM5C In-Ceiling Loudspeaker
Product Type	Speaker

Miscellaneous
Environmentally Friendly	Yes
Package Contents	DesignMax DM5C In-Ceiling Loudspeaker Adjustable Tile-Bridge Template

Physical Characteristics
Color	Black
Color Family	Black
Cutout Diameter	9.84"
Depth	8.11"
Form Factor	In-ceiling Mount
Height	11.89"
Product Color	Jet Black
Speaker Installation	Indoor
Weight (Approximate)	9.81 lb
Width	16.024
Woofer Diameter	5.25"

Product Information
Diameter	12"
Length	28.228

Technical Information
Crossover Type	2-way
Impedance	8 ohms
Speaker Size	5"
Tweeter Driver Material	Dome
Tweeter Driver Size	1"
Woofer Driver Size	5.25"
