Description

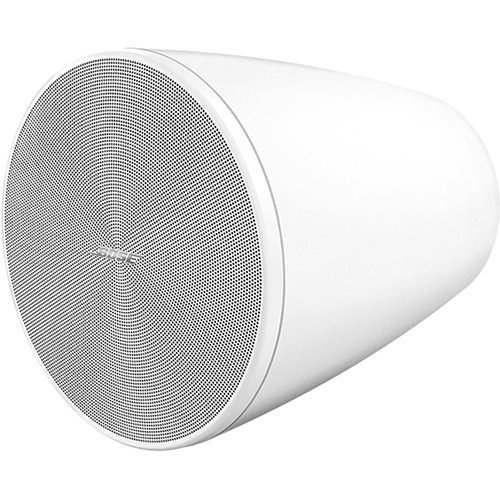

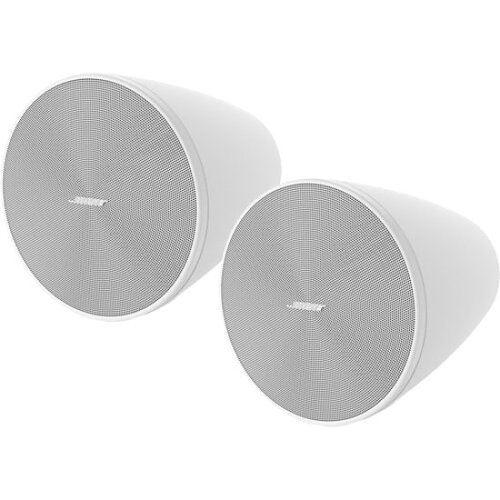

With a coaxial two-way design, the 60-watt DesignMax DM5P loudspeaker delivers robust low frequencies and clear, intelligible high frequencies, complemented by premium aesthetics perfect for any commercial sound installation. Its pendant-style features a coaxial 5.25-inch woofer and 1-inch tweeter integrated within the Dispersion Alignment system, ensuring a frequency range of 65 Hz to 20 kHz. The DM5P offers a recessed single-point suspension system for an elegant and streamlined appearance, available in black or white.

**Key Features**

– **Optimize commercial sound installations** with a comprehensive range of 16 DesignMax loudspeakers available in various styles such as in-ceiling, surface-mount, and pendant configurations, as well as subwoofers, high-SPL compression-driver models, compact low-profile variants, and options that are outdoor-rated.

– **Select from three DM5 models:** the in-ceiling DM5C, the outdoor-rated surface-mount DM5SE, and the sophisticated DM5P pendant loudspeaker.

– **Achieve rich lows and crisp, intelligible highs with a coaxial two-way design** that requires no DSP or EQ. For enhanced audio quality, integrate select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which improve performance and response at any listening level.

– **Ensure uniform sound coverage** with the Dispersion Alignment system, which aligns the coverage of the woofer with the tweeter’s pattern.

– **Enhance room aesthetics** with elegant design elements, featuring minimum-bezel grilles available in black or white and removable logos.

– **Facilitate easy installation using industry-standard accessories:** all models are equipped with Euroblock connectors, and the in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring for simplified installation and troubleshooting.

– **Maintain a clean, appealing look** with pendant loudspeakers that include a recessed single-point suspension system, keeping hardware out of view while accommodating a service loop for easy access.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response80 Hz
Number of Speakers2
PMPO Output Power240 W
RMS Output Power50W

General Information
Brand NameBose Professional
ManufacturerBose Corporation
Manufacturer Part Number841166-0210
Packaged Quantity2
Product LineDesignMax
Product ModelDM5P
Product NameDesignMax DM5P Pendant Loudspeaker
Product TypeSpeaker

Miscellaneous
Package Contents DesignMax DM5P Pendant Loudspeaker 1 x Gripple Adjustable Suspension Cable System 4 x Cable Ties

Physical Characteristics
Application/UsageIndoor
ColorWhite
Depth118.11"
Form FactorIn-ceiling Mount, Pendant Mount, Surface Mount
Height12.79"
Product ColorWhite
Speaker InstallationIndoor
Weight (Approximate)9.04 lb
Width18.11

Product Information
Diameter10.2"
Length27.559

Technical Information
Crossover Type2-way
Impedance8 ohms
Sensitivity87 dB
Tweeter Driver Size1"
Woofer Driver Size5.25"
