Description
**Installation**

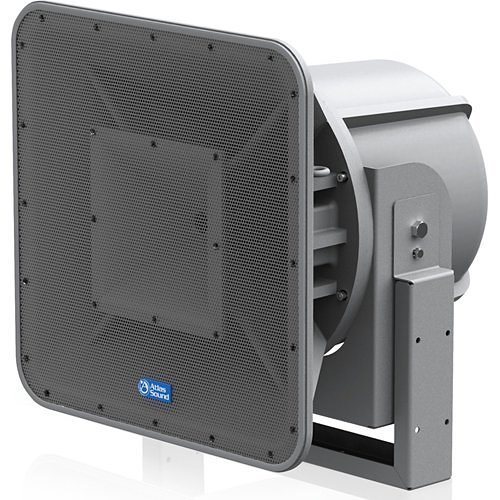

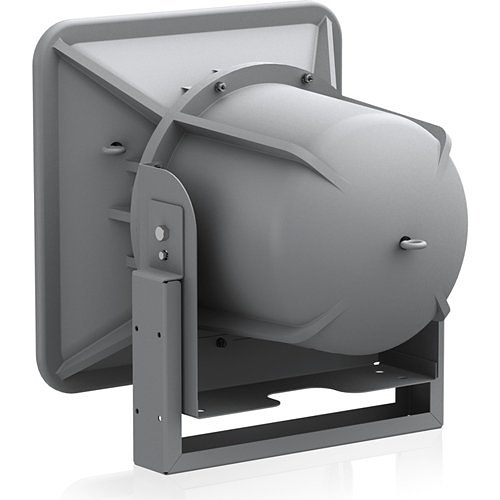

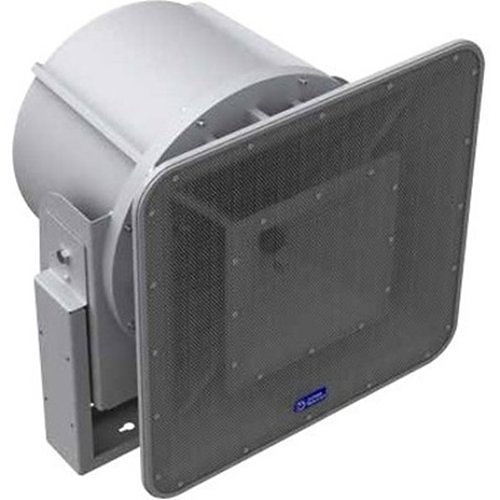

The AH99-8T-BSG comes with a robust stainless steel “C” style mounting bracket designed for straightforward installation on virtually any flat surface. Additionally, it is equipped with three drop forged eyebolts (two at the front of the horn and one at the rear for “pull-up”) to facilitate suspension mounting using load-rated wire rope. Exercise caution when suspending any object overhead and always refer to the installation guide for detailed instructions.
For easy connectivity, the AH99-8T-BSG features a weather-resistant 7-pole terminal block connector at the bottom of the speaker. This connector provides access to an internal 70.7V transformer with tap settings of 7.5, 15, 30, and 60 watts, as well as an 8-ohm connection for transformer bypass.
**Features**
- Durable Mounting Bracket Included for Hassle-Free Installation on Flat Surfaces
- Comes with Three Forged Eyebolts for Suspension Installation
- 100 Watts Power Handling Capability
- Constant Directivity Technology Ensures Controlled Sound Coverage of 90° Horizontal by 90° Vertical (2kHz Octave Band)
- Driver Assembly Includes an 8″ Cast Frame Woofer and a 1″ Exit Compression Driver Coupled to a 90° H x 90° V High-Frequency Horn
- Weather-Resistant Connectivity via a Convenient Recessed Terminal Block on the Loudspeaker’s Base
- Integrated High-Efficiency 60 Watt 70.7V Transformer
- Efficiency Rating: 101dB (1 W/1 M)
- Peak Output: 121dB (Rated Power @ 1 M)
**Applications**
The AH99-8T-BSG stadium horn loudspeaker is perfect for directional sound applications where full-range sound reproduction, maximum clarity, and high sound pressure levels are essential. Applications include environments like football stadiums, sports arenas, baseball fields, convention centers, and auditoriums.

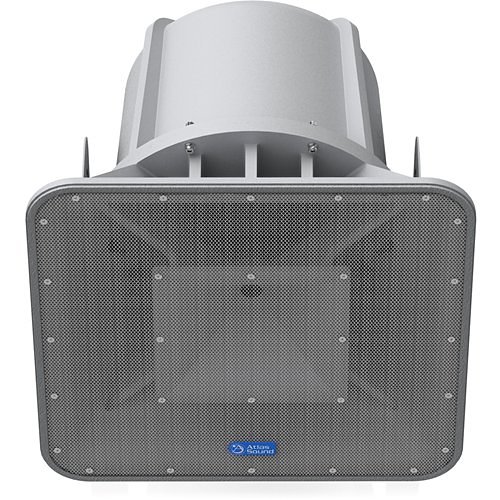

For enhanced weather resistance, the AH99-8T-BSG is constructed with multiple screen layers to safeguard internal components against moisture. The large horn mouth is shielded by a perforated aluminum screen, a secondary screen is placed in front of the high-frequency driver, and a third finely perforated screen protects the 8″ cast frame woofer.
