Description

**Product Overview**

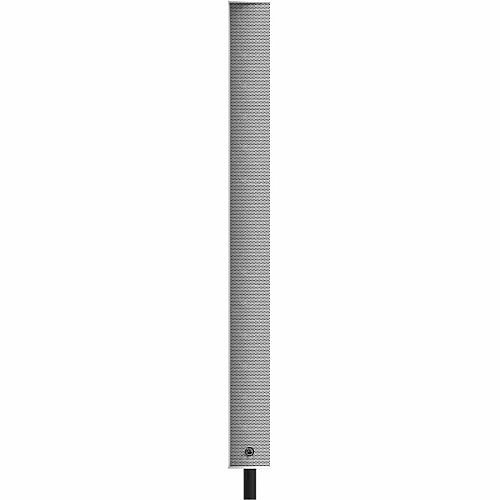

The EN54-24 certified ALA15TAW column line array loudspeaker is engineered for superior performance in streamlined designs, ideal for scenarios demanding exceptional speech intelligibility. This advanced audio solution integrates fifteen precision-aligned 3″ (76mm) full-range drivers alongside four 22mm high-frequency tweeters, all encased in a robust extruded aluminum housing for both durability and premium sound delivery. Its lightweight structure and easy installation are complemented by modern aesthetics that enhance any setting. The enclosure’s back includes vertical channels compatible with the provided wall mount, allowing for adjustable vertical tilt. Additionally, an optional pole mount bracket is available, enabling the array to be used in portable setups alongside an A-Line subwoofer system for versatile sound reinforcement.

Audio
Maximum Frequency Response160 kHz
Minimum Frequency Response160 Hz
RMS Output Power600W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlasIED
Manufacturer Part NumberALA15TAW
Product LineLine Array
Product ModelALA15TAW
Product NameALA15TAW Passive Column Line Array Loudspeaker
Product SeriesALA
Product TypeSpeaker

Miscellaneous
Country of OriginCN
FeaturesLightweight
Package Contents ALA15TAW Passive Column Line Array Loudspeaker Wall Mount Bracket

Physical Characteristics
Application/UsageArchitecturally Sensitive Space, Challenging Acoustic Space, Concourse, Conference Room, Convention Center, Gymnasium, House of Worship, Lecture Hall, Multipurpose, Museum, Retail Space, Stadium, Theatre, Transportation
ColorWhite
Depth5.43"
Form FactorPole Mount, Wall Mount
Height49.4"
Product ColorWhite
Weight (Approximate)29.76 lb
Width4.6"

Technical Information
Crossover Type2-way
Full Range Driver Size2.99"
Impedance6 ohms
Sensitivity96 dB
Tweeter Driver Size0.87"
Woofer Driver Size2.99"

Warranty
Limited Warranty5 Year
