Description

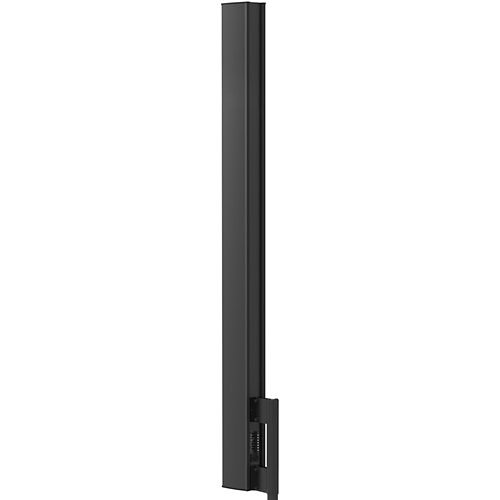

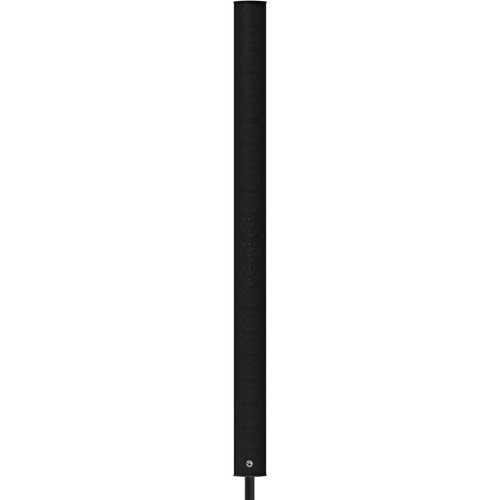

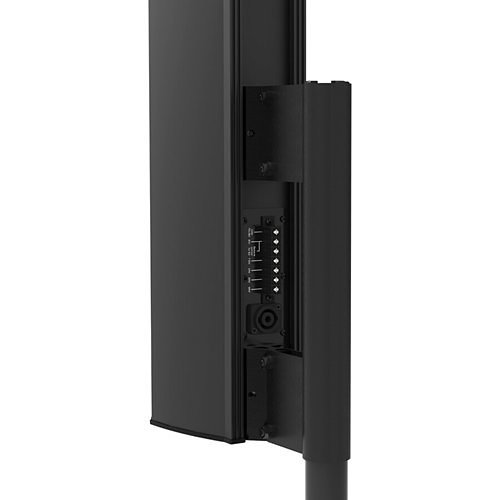

The ALA20T column line array loudspeaker is engineered to deliver superior pattern control and optimum sound performance in a compact design, making it ideal for applications requiring exceptional speech intelligibility. The transducer configuration of the ALA20T integrates twenty tightly packed 3-inch full-range drivers with six 22mm high-frequency tweeters within a rugged extruded aluminum housing, ensuring both durability and superior acoustics. This lightweight and easy-to-install enclosure features a modern aesthetic that complements a variety of environments. The rear of the enclosure is equipped with vertical channels for the included wall mount, allowing installers to easily adjust the vertical tilt as needed. Additionally, an optional pole mount bracket is available for using the array in portable setups, perfect when paired with a portable A-Line subwoofer system.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response110 Hz
PMPO Output Power1000 W
RMS Output Power500W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlas Sound LP.
Manufacturer Part NumberALA20T-B
Product LineLine Array
Product ModelALA20T
Product NameUltra-Compact, Passive Column Line Array Loudspeaker
Product TypeSpeaker

Miscellaneous
Country of OriginCN
Package Contents Ultra-Compact, Passive Column Line Array Loudspeaker Wall Mount Bracket

Physical Characteristics
Application/UsageConference Room, Convention Center, Gymnasium, House of Worship, Lecture Hall, Multipurpose, Museum, Retail Space, Stadium, Transportation
ColorBlack
Depth5.43"
Form FactorWall Mount
Height65.8"
Product ColorBlack
Weight (Approximate)38.10 lb
Width4.6"

Technical Information
Crossover Type2-way
Full Range Driver Size3"
Impedance8 ohms
Sensitivity127 dB
Speaker Size20"
Tweeter Driver MaterialAluminum
Tweeter Driver Size0.87"

Warranty
Limited Warranty5 Year
