Description

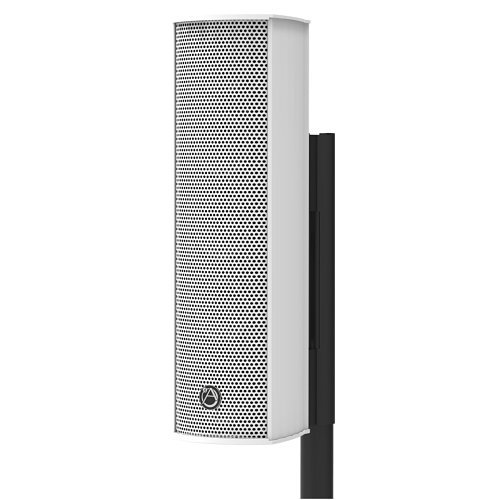

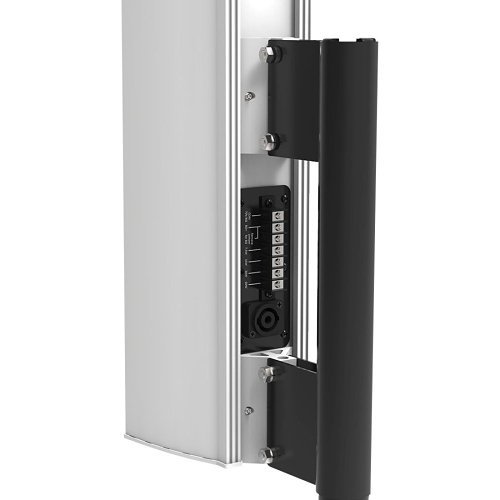

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker is engineered to deliver top-tier audio performance with a minimal footprint, making it ideal for situations demanding exceptional speech intelligibility. Its sophisticated transducer configuration includes five tightly packed 3″ (76mm) full-range drivers paired with two 22mm high-frequency tweeters, all housed in a robust extruded aluminum frame for enhanced durability and superior sound quality. This lightweight enclosure is designed for easy installation and features modern aesthetics that enhance any setting. The back panel of the enclosure includes vertical channels that are compatible with the included wall mount, allowing installers to adjust the vertical tilt for optimal positioning. Additionally, an optional pole mount bracket is available, facilitating the use of the array in setups that incorporate a portable A-Line subwoofer system.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response137 Hz
PMPO Output Power250 W
RMS Output Power375W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlasIED
Manufacturer Part NumberALA5TAW
Product ModelALA5TAW
Product NameALA5TAW Ultra-Compact, Passive Column Line Array Loudspeaker
Product SeriesALA
Product TypeSpeaker

Miscellaneous
FeaturesLightweight
Package Contents ALA5TAW Ultra-Compact, Passive Column Line Array Loudspeaker Wall Mount Bracket

Physical Characteristics
Application/UsageConference Room, Convention Center, Gymnasium, House of Worship, Lecture Hall, Multipurpose, Museum, Retail Space, Stadium, Transportation
ColorWhite
Depth5.43"
Height16.6"
Product ColorWhite
Speaker InstallationIndoor
Weight (Approximate)11.30 lb
Width4.6"

Product Information
Mount TypePole Mount, Wall Mount

Technical Information
Crossover Type2-way
Full Range Driver Size2.99"
Impedance6 ohms
Sensitivity92 dB
Tweeter Driver MaterialDome
Tweeter Driver Size0.87"
Woofer Driver Size0.87"

Warranty
Limited Warranty5 Year
