Description

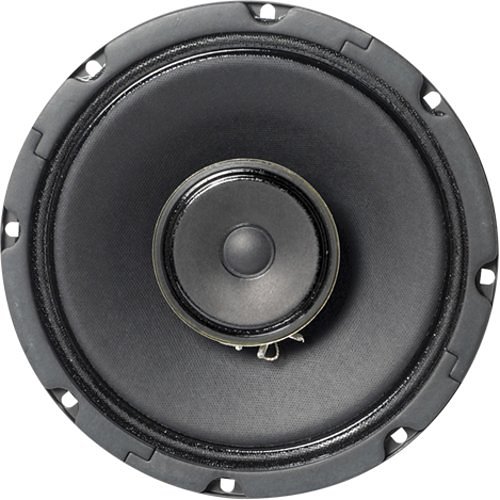

The Model C803AT47 is a premium 16-watt loudspeaker featuring a factory-installed 70.7V 4W line-matching transformer. This system integrates a post-mounted tweeter for enhanced structural integrity and an aesthetically pleasing design. This coaxial speaker offers an impressive frequency response of 70 Hz to 15.5 kHz, ±5dB, along with a wide 120° dispersion pattern, ensuring exceptional sound clarity and effective coverage in advanced audio systems. The Model C803A combines an 8-inch (203mm) diameter low-frequency driver with a 3-inch (76mm) high-frequency driver. These components are seamlessly integrated through a built-in crossover network. The woofer is equipped with a 10 oz. (260g) ceramic magnet, while the tweeter features a 2.35 oz. (67g) ceramic magnet, achieving a peak sensitivity of 98dB (at 1 watt, 1 meter). The Model C803A is designed to be compatible with a wide range of Atlas Sound baffles and enclosures, with an optimal sealed enclosure capacity of 0.36 cubic feet.
