Description

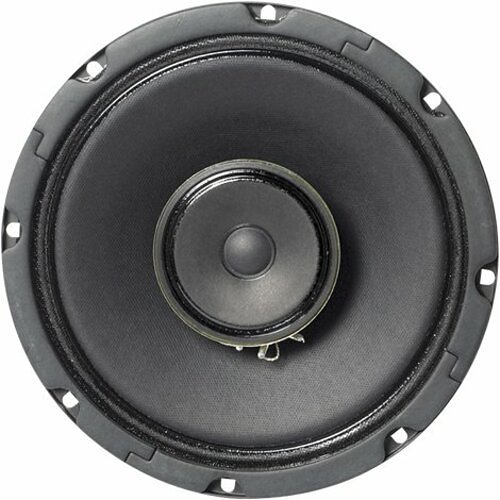

Model C803AT87 is a premium 16-watt loudspeaker equipped with a factory-installed 70.7V 8W line-matching transformer, making it ideal for advanced audio systems. This coaxial loudspeaker features a post-mounted tweeter that enhances the structural integrity and provides a sleek appearance. With a frequency response of 70 Hz to 15.5 kHz, ±5dB, and a broad, uniform dispersion pattern of 120°, this speaker ensures exceptional sound clarity and optimal distribution throughout high-quality sound installations.
The C803A integrates a robust 8″ (203mm) diameter low-frequency driver and a 3″ (76mm) high-frequency driver, both seamlessly linked through an internal crossover network. The woofer is powered by a 10 oz. (260g) ceramic magnet, while the tweeter utilizes a 2.35 oz. (67g) ceramic magnet, achieving a peak sensitivity of 98dB (at 1 watt, 1 meter).
Compatible with a wide range of Atlas Sound baffles and enclosures, the C803A operates best within a .36 cu. ft. sealed enclosure, ensuring versatility and superior performance across diverse audio environments.
