Description

– The innovative mounting system ensures rapid, simple, and reliable installations.

– Carefully engineered for outdoor environments (IP54-rated) while maintaining superior performance.

– Features a long-throw 4″ (102 mm) woofer housed in a fire-rated ABS plastic enclosure for extended low-frequency performance down to 75 Hz.

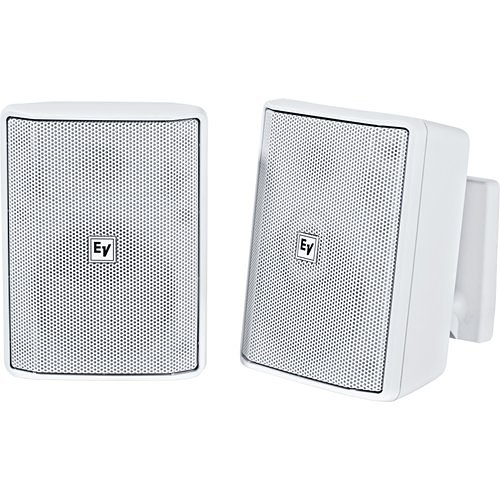

The Electro-Voice EVID-S4.2T is a high-performance, two-way, full-range, 4″ (102 mm) surface-mount speaker that delivers excellent wide, uniform coverage and remarkable sound quality. It is designed for both background and foreground music, paging, and sound reinforcement. This versatile speaker is ideal for a diverse range of indoor and outdoor applications, such as restaurants, bars, patios, retail spaces, fitness clubs, hospitality settings, theme parks, leisure venues, and more. With its unparalleled ease of installation, robust weather resistance, modern aesthetics, and flexible mounting options, the EVID-S4.2T is the perfect audio solution for numerous surface-mount applications.

The EVID-S4.2T features a unique, innovative mounting system from Electro-Voice, which simplifies installation, allowing for horizontal rotation up to 90 degrees and vertical rotation up to 45 degrees. This pre-assembled mounting system is ready to make any installation seamless and efficient, whether on walls or ceilings.

The EVID-S4.2T incorporates a 15 W transformer, providing selectable power options of 3.7 W (70 V only), 7.5 W, or 15 W through either 70 V or 100 V lines. Power selection is facilitated by a Euroblock connector located on the speaker’s rear input panel.

Carefully engineered to withstand outdoor environments without sacrificing indoor performance, the full-range speaker is IP54 rated. Its weatherproof design is enhanced by a rugged cabinet and grille that resist sun, salt, and moisture damage. Available in black or white, all EVID-S models can be easily painted to match any décor. Transformer versions are also provided for constant voltage systems.

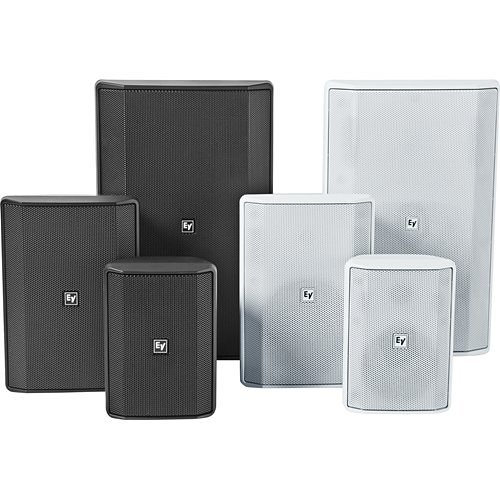

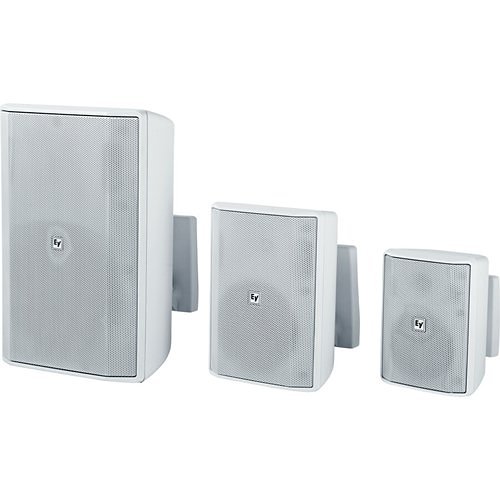

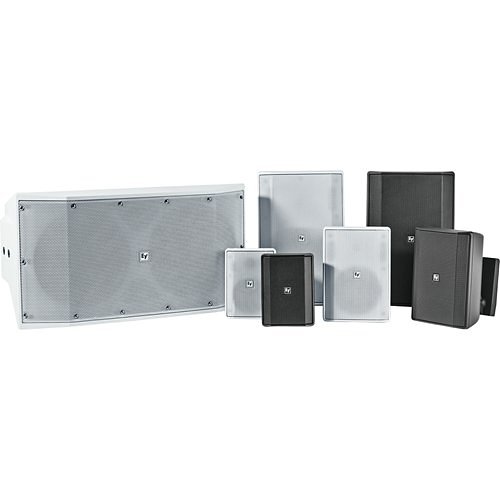

The diverse range of EVID surface-mount speakers is designed to function cohesively as a comprehensive system across various surface-mount configurations, and they integrate seamlessly with other EVID ceiling and in-wall speakers.

Audio
Maximum Frequency Response0.02 kHz
Minimum Frequency Response75 Hz
Number of Speakers2
PMPO Output Power60W
RMS Output Power15W

General Information
Brand NameElectro-Voice by Bosch
ManufacturerThe Bosch Group
Manufacturer Part NumberEVID-S4.2TW
Packaged Quantity2
Product LineCabinet
Product ModelEVID-S4.2T
Product NameEVID-S4.2T Speaker 4" Cabinet 70/100V Pair
Product SeriesEVID
Product TypeSpeaker

Miscellaneous
Package Contents EVID-S4.2T Speaker 4" Cabinet 70/100V Pair Mounting Bracket And 4-mm Allen Wrench

Physical Characteristics
Application/UsageAmusement Park, Bar, Health Club, Hospitality, Leisure Center, Patio, Restaurant, Retail Space
ColorWhite
Depth5"
Form FactorIn-ceiling Mount, In-wall Mount, Surface Mount, Wall Mount
Speaker InstallationIndoor|Outdoor
Width6"
Woofer Diameter4"

Technical Information
Crossover Type2-way
Sensitivity98.5 dB
Speaker Size4"
Woofer Driver MaterialPolypropylene
Woofer Driver Size4"
