Description

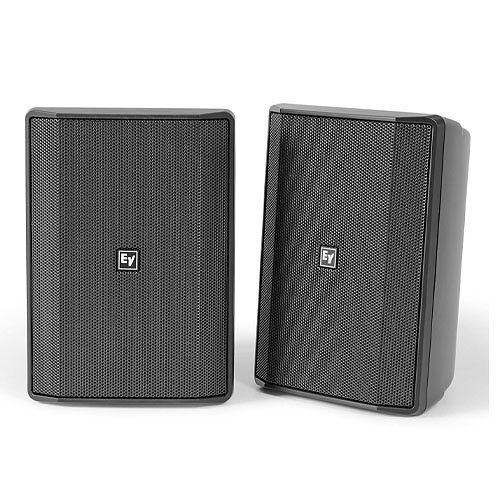

The Electro-Voice EVID-S5.2T is a high-performance, two-way, full-range, 5.25-inch surface mount speaker that delivers exceptional audio quality with wide, consistent coverage. This speaker is engineered for background and foreground music, paging, and sound reinforcement, making it an ideal choice for diverse environments such as restaurants, bars, patios, retail spaces, fitness centers, hospitality venues, theme parks, and other leisure facilities. It combines robust weather resistance, an elegant and modern design, and versatile mounting capabilities to provide an optimal solution for a range of surface mount audio applications.

The EVID-S5.2T features a unique and innovative mounting system that simplifies the installation process. This system enables 90-degree horizontal and 45-degree vertical rotation and can be easily fitted on walls and ceilings, arriving pre-assembled for immediate use.

Equipped with a 30-watt transformer, the EVID-S5.2T offers multiple wattage options—3.7 W (70 V only), 7.5 W, 15 W, or 30 W—with a straightforward switch on the rear input panel for 70 V, 100 V lines, or 8 Ω bypass for low impedance lines. It is engineered for durability in outdoor environments while maintaining superior performance indoors. The speaker is IP54-rated, ensuring weatherproofing alongside its resilient cabinet and grille, which resist damage from sun, salt, and moisture. Available in black or white, all EVID-S models can be painted to match any décor, and transformer versions are available for constant voltage systems.

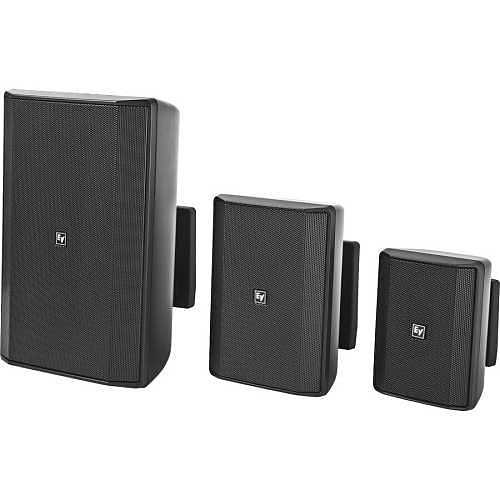

EVID surface mount speakers are designed to function cohesively as part of a complete audio system, compatible with various surface mount installations, and working seamlessly with other EVID ceiling and in-wall speaker options.

Audio
Maximum Frequency Response20 Hz
Minimum Frequency Response60 Hz
Number of Speakers1
PMPO Output Power300W
RMS Output Power75W

General Information
Brand NameElectro-Voice by Bosch
ManufacturerThe Bosch Group
Manufacturer Part NumberEVID-S5.2TB
Packaged Quantity2
Product LineCabinet
Product ModelEVID-S5.2T
Product NameEVID-S5.2T Speaker 5" Cabinet 70/100V Pair
Product SeriesEVID
Product TypeSpeaker

Miscellaneous
Package Contents EVID-S5.2T Speaker 5" Cabinet 70/100V Pair Mounting Bracket And 5-mm Allen Wrench

Physical Characteristics
Application/UsageAmusement Park, Bar, Health Club, Hospitality, Leisure Center, Patio, Restaurant, Retail Space
ColorBlack
Depth5.94"
Form FactorSurface Mount
Height10"
Product ColorBlack
Speaker InstallationIndoor|Outdoor
Weight (Approximate)7.05 lb
Width7.1"
Woofer Diameter5.24"

Technical Information
Crossover Type2-way
Impedance8 ohms
Sensitivity109 dB
Speaker Size5"
Woofer Driver MaterialPolypropylene
Woofer Driver Size5.24"

Warranty
Limited Warranty3 Year
