Description

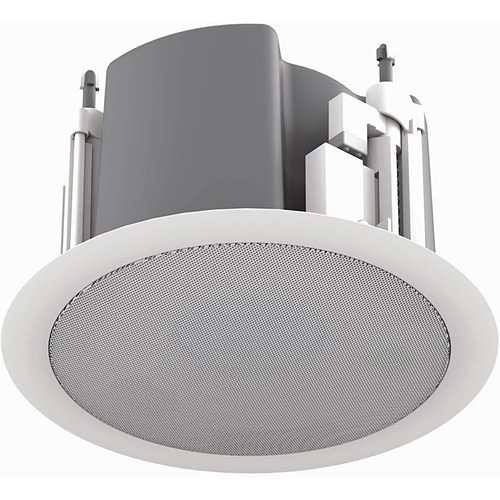

The AtlasIED FAP33T Strategy III is a 3″ full-range loudspeaker featuring cutting-edge installation technology, packed with innovative performance enhancements at an affordable price, suited for a variety of audio installation applications. If you’re seeking an in-ceiling loudspeaker that excels in speech intelligibility, delivers crisp music reproduction, ensures quick installation, and provides extensive audience coverage, this is the optimal choice. Building upon the acclaimed Strategy Series and through comprehensive market research, we have set a new benchmark. The impressive results will make it a preferred choice for future projects. Retail environments, restaurants, recreational facilities, hotels, convention centers, and casinos have redefined their expectations for in-ceiling loudspeaker performance. Previously, any speaker that produced basic sound sufficed, but now, building proprietors demand superior sound to enhance customer experience. With its improved waveguide design, the FAP33T offers broader coverage, leading to cost savings as fewer speakers are needed to maintain even sound distribution. The low-frequency tuning port is optimized for enhanced bass response, delivering deeper lows. The FAP33T is safety certified to UL1480 and UL2043 standards. Unlike many competitors using rust-prone steel screws, this model ensures corrosion-free operation, with no metal screws securing the doglegs. Our Safety First Mounting System (SFMS) represents a major innovation, preventing damage to mounting tabs during installation—a common issue from over-tightening. The SFMS went through over 100 prototypes to arrive at its effective, patent-pending design, featuring t-handles on the speaker baffle for easy tightening in materials from sheet metal to 3/4″ thickness. This system significantly reduces installation time by up to 60% and requires no tools for setup. The front-mounted 70V tap selector facilitates quick power tap adjustments, while a removable 4-pole euro-style connector simplifies pre-wiring and daisy-chaining additional speakers or subwoofers. The result is reduced labor costs and increased profitability.

Audio
Maximum Frequency Response12 kHz
Minimum Frequency Response85 Hz
Number of Speakers2
PMPO Output Power50 W
RMS Output Power25W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlasIED
Manufacturer Part NumberFAP33T-W
Product LineStrategy III
Product ModelFAP33T-W
Product NameFAP Strategy III Series 3" Full Range Ceiling Loudspeaker
Product SeriesStrategy III
Product TypeSpeaker

Miscellaneous
Package Contents FAP Strategy III Series 3" Full Range Ceiling Loudspeaker Quick Release Tool Grill Puller

Physical Characteristics
ColorWhite
Depth5.39"
Form FactorIn-ceiling
Height8.8"
Speaker InstallationIndoor
Weight (Approximate)4.14 lb
Width8.8"

Technical Information
Crossover Type2-way
Impedance8 ohms
Speaker Size3"

Warranty
Limited Warranty5 Year
