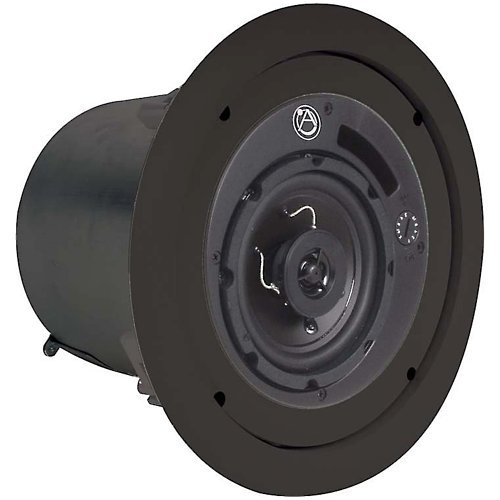

AtlasIED FAP42T-B 4″ Coaxial In-Ceiling Speaker with 16W 70/100V Transformer, Ported Enclosure, Black

Name: AtlasIED FAP42T-B 4" Coaxial In-Ceiling Speaker with 16W 70/100V Transformer, Ported Enclosure, Black
SKU: FAP42T-B
Availability: InStock

in stock

Special Order

$114.53

Capable of delivering up to 25 watts of RMS power output
Experience outstanding audio clarity with a frequency response range of 75 Hz to 20 kHz
8-Ohm impedance ensures optimal power extraction for enhanced speaker output
Enhanced low-frequency response thanks to the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
Front-mounted tap selector switch allows for convenient system tuning adjustments, including transformer bypass setting for 8-ohm direct coupled operation
Ideal pairing with the FAPSUB subwoofer system for superior sub-bass performance
Press-fit grille seamlessly integrates with modern architectural designs

SKU: FAP42T-B Categories: Commercial Audio, Pro AV, Pro Speakers

Description

The FAP42T-B seamlessly integrates advanced coaxial loudspeaker performance with broad dispersion and effortless installation. Its compact design and expansive coverage make it an ideal choice for environments with low ceilings. This model caters to the demands of owners, architects, contractors, and consultants by offering genuine, high-fidelity audio in a visually appealing, easy-to-mount system. The FAP42T-B excels in delivering high-intelligibility voice, music, and signal reproduction, making it perfect for commercial, industrial, and institutional applications.

Audio
Maximum Frequency Response	20 kHz
Minimum Frequency Response	75 Hz
RMS Output Power	25W

Certifications
NDAA Compliant	Yes
TAA Compliant	No

General Information
Brand Name	AtlasIED
Manufacturer	AtlasIED
Manufacturer Part Number	FAP42T-B
Product Line	Strategy II
Product Model	FAP42T
Product Name	4" Coaxial Speaker System With 70.7V/100V-16W Transformer And 8? Bypass
Product Series	Strategy II
Product Type	Speaker

Miscellaneous
Package Contents	4" Coaxial Speaker System With 70.7V/100V-16W Transformer And 8? BypassC-ring/V-rail Tile Bridge"Dog Leg" Mounting System

Physical Characteristics
Color	Black
Cutout Diameter	8.90"
Depth	8.88"
Height	8.9"
Product Color	Black, White
Product Material	Butyl Rubber, Polypropylene, Steel
Speaker Installation	Indoor

Product Information
Diameter	10.5"
Mount Type	Ceiling Mount

Technical Information
Impedance	8 ohms
Sensitivity	88 dB
Speaker Size	4"
Tweeter Driver Material	Polyetherimide (PEI)
Woofer Driver Material	Cone
Woofer Driver Size	4"
