Description

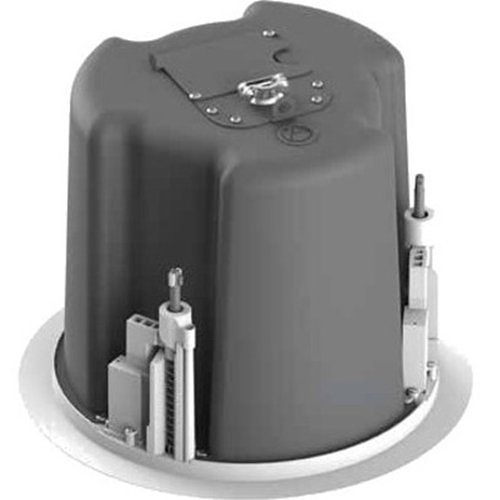

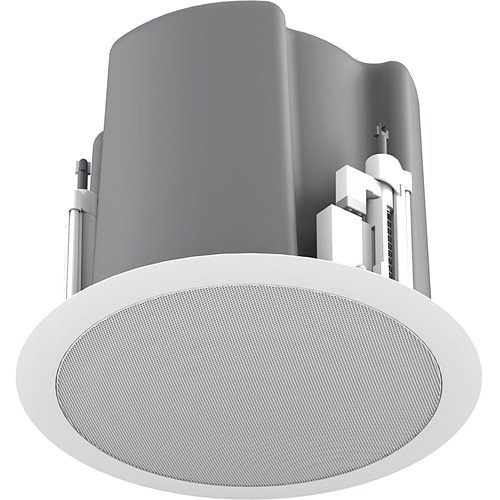

The AtlasIED FAP63T Strategy III is a cutting-edge 6.5″ coaxial loudspeaker featuring state-of-the-art installation technology. Engineered with next-gen performance features at an affordable price, this in-ceiling loudspeaker excels in speech intelligibility, crisp music reproduction, speedy installation, and expansive audience coverage, making it the ideal choice for diverse installation needs. Building on the acclaimed Strategy Series, extensive market research has driven these exceptional standards, ensuring it becomes the go-to solution for future projects. Retail environments, hospitality venues, recreational facilities, and beyond have redefined their expectations of in-ceiling loudspeaker performance. In today’s market, subpar sound is no longer sufficient; building owners are enhancing customer experiences with outstanding audio quality. The advanced waveguide design ensures broader coverage, resulting in cost savings due to fewer speakers required, while maintaining consistent sound distribution. Low-frequency response is elevated through optimized tuning, delivering rich bass definition. The FAP63T meets UL1480 and UL2043 safety standards, ensuring reliable performance in various climate conditions. Unlike competitors, it resists corrosion with metal-free screw design, mitigating rust risks. The innovative Safety First Mounting System (SFMS) minimizes installation damage, preventing over-torque damage to mounting tabs, enhancing long-term security. Developed from over 100 prototype tests, the SFMS employs t-handles on the speaker baffle for quick mounting in materials as thin as sheet metal up to 3/4″. It significantly reduces installation time by up to 60%, requiring no tools for setup. With a front-mounted 70V tap selector for easy power adjustments and a removable 4-pole euro-style connector for seamless pre-wiring and daisy-chaining, labor costs decrease while profitability increases.

Audio
Maximum Frequency Response20 kHz
Minimum Frequency Response50 Hz
Number of Speakers2
RMS Output Power150W

Certifications
NDAA CompliantYes
TAA CompliantNo

General Information
Brand NameAtlasIED
ManufacturerAtlasIED
Manufacturer Part NumberFAP63T-W
Product LineStrategy III
Product ModelFAP63T-W
Product NameFAP Strategy III Series Ceiling Loudspeaker
Product SeriesStrategy III
Product TypeSpeaker

Miscellaneous
Country of OriginCN
Features4 Pole Detachable, Enhanced Quality, Press Fit Grilles, Unique Trap Door

Physical Characteristics
Application/UsageMusic, Signal reproduction, Voice
ColorWhite
Cutout Diameter9.18"
Depth8.86"
Form FactorIn-ceiling
Height10.5"
Product ColorWhite
Speaker InstallationIndoor
Weight (Approximate)7.82 lb
Width10.5"

Product Information
Diameter10.51"

Technical Information
Crossover Type2-way
Impedance8 ohms
Sensitivity90 dB
Speaker Size6.5"
Tweeter Driver MaterialSilk Dome
Tweeter Driver Size1"
Woofer Driver Size6.50"

Warranty
Limited Warranty5 Year
