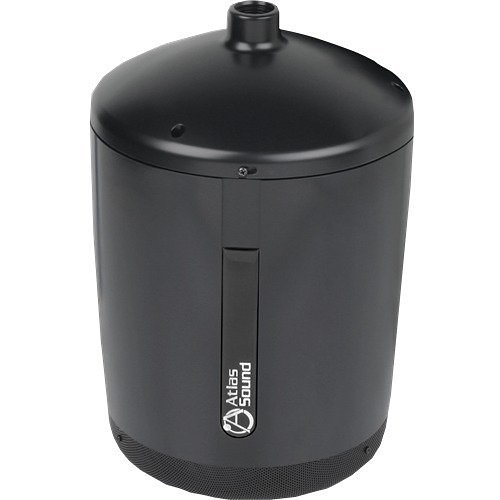

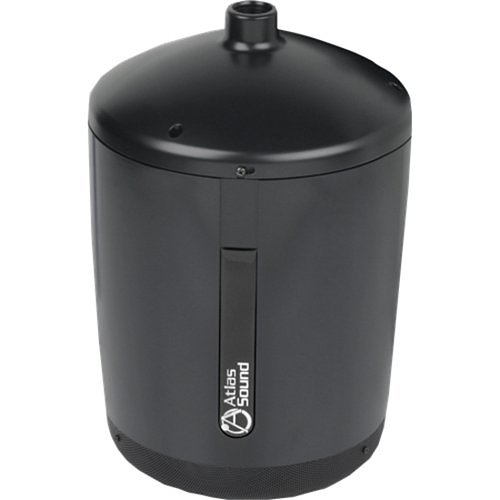

The Model PM8GD-B incorporates the widely-used Atlas Sound GD series coaxial driver, delivering reliable acoustic performance and high efficiency. It’s an economical choice for installations demanding a high concentration of speakers, especially suited for paging applications.
| Audio | |
| Maximum Frequency Response | 15 kHz |
| Minimum Frequency Response | 55 Hz |
| RMS Output Power | 16W |
| Certifications | |
| NDAA Compliant | Yes |
| TAA Compliant | No |
| Environmental Conditions | |
| Sound Emission | 96 dB |
| General Information | |
| Brand Name | Atlas Sound |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | PM8GD-B |
| Product Model | PM8GD-B |
| Product Name | 8" 2-way High Efficiency Pendant Mount Speaker with 70.7V-8W Transformer |
| Product Series | GD |
| Product Type | Speaker |
| Miscellaneous | |
| Country of Origin | TW |
| Features | 3 Meters of 2mm Cable & Mounting Hardware Included, 70.7V Taps @ 1, 2, 4, 8 Watts and 8O Direct Input via Concealed Terminal Block, 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band, Compatible with Standard 3/4" Ceiling Fan Hardware, Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations |
| Package Contents | 8" 2-way High Efficiency Pendant Mount Speaker with 70.7V-8W Transformer3 Meters CableMounting Hardware |
| Physical Characteristics | |
| Color | Black |
| Speaker Installation | Indoor |
| Product Information | |
| Diameter | 12 1/4" |
| Mount Type | Ceiling Mount, Pendant Mount |
| Technical Information | |
| Crossover Type | 2-way |
| Impedance | 8 ohms |
| Sensitivity | 96 dB |
| Speaker Size | 8" |
