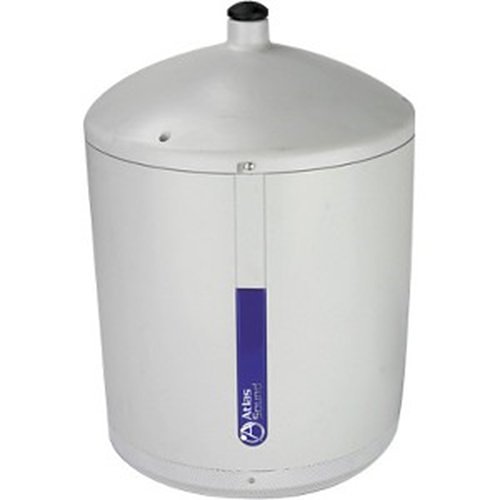

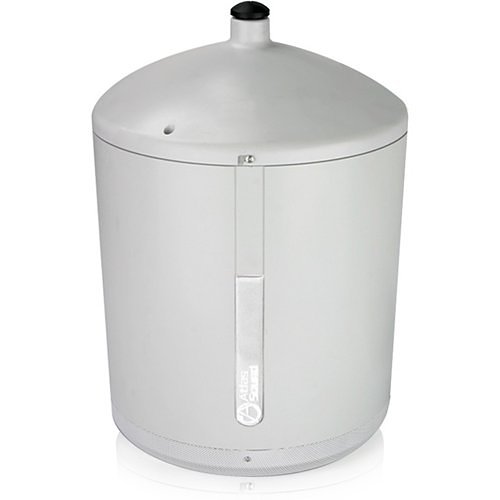

AtlasIED PM8GD-WH 8" 2-Way High Efficiency Pendent Speaker with 8W 70V Transformer, White

AtlasIED PM8GD-WH 8″ 2-Way High Efficiency Pendent Speaker with 8W 70V Transformer, White

In Stock

$264.31

8" two-way high-efficiency pendant speaker
70.7V transformer taps available in 1, 2, 4, and 8 watts
8Ω direct input through a concealed terminal block
120° coverage pattern in the 2kHz frequency range
Comes with 3 meters of 2mm cable and mounting accessories
Compatible with standard 3/4" ceiling fan installations
Exceptional high efficiency at 96dB 1W/1m

SKU: PM8GD-WH Categories: Commercial Audio, Pro AV, Pro Speakers

Description

The PM8GD-WH model features the sought-after AtlasIED GD series coaxial driver, offering optimal response and high efficiency, making it a cost-effective option for installations requiring a high density of speakers in paging applications.

**FEATURES**

– 70.7V Taps at 1, 2, 4, 8 Watts and 8Ω direct input via concealed terminal block
– Equipped with an 8″ GD87 driver for 120-degree (60-degree off-axis) coverage in the 2kHz octave band
– Comes with 3 meters of 2mm cable and mounting hardware
– Compatible with standard 3/4″ ceiling fan hardware
– Exceptionally high efficiency (96dB 1W/1m) enables lower tap settings and greater speaker counts per amplifier channel in various installations

Audio
Maximum Frequency Response	15 kHz
Minimum Frequency Response	55 Hz
RMS Output Power	15W

Certifications
NDAA Compliant	Yes
TAA Compliant	No

Environmental Conditions
Sound Emission	96 dB

General Information
Brand Name	AtlasIED
Manufacturer	Atlas Sound LP.
Manufacturer Part Number	PM8GD-WH
Product Model	PM8GD-WH
Product Name	8" 2-Way High Efficiency Pendant Speaker with 8-Watt 70V Transformer - White
Product Series	GD
Product Type	Speaker

Miscellaneous
Country of Origin	TW
Features	3 Meters of 2mm Cable & Mounting Hardware Included, 70.7V Taps @ 1, 2, 4, 8 Watts and 8O Direct Input via Concealed Terminal Block, 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band, Compatible with Standard 3/4" Ceiling Fan Hardware, Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations
Package Contents	8" 2-Way High Efficiency Pendant Speaker with 8-Watt 70V Transformer - White 3 Meters of 2mm Cable Mounting Hardware

Physical Characteristics
Color	White
Height	16.625
Speaker Installation	Indoor
Woofer Diameter	8"

Product Information
Mount Type	Ceiling Mount, Pendant Mount

Technical Information
Crossover Type	2-way
Sensitivity	96 dB(A)
Speaker Size	8"
Tweeter Driver Material	Treated Paper
Tweeter Driver Size	3"
Woofer Driver Material	Treated Paper
Woofer Driver Size	8"
