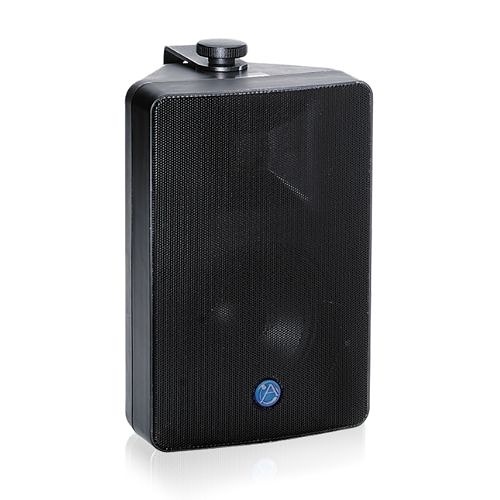

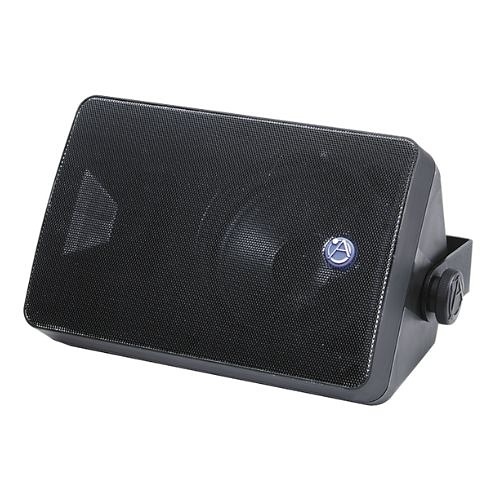

AtlasIED SM52TEN-B Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer, Black

AtlasIED SM52TEN-B Certified 5.25″ 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer, Black

Name: AtlasIED SM52TEN-B Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer, Black
SKU: SM52TEN-B
Availability: InStock

In Stock

Special Order

$237.61

Compact, dual-direction loudspeaker systems designed for outstanding performance in audio and sound reinforcement applications
Durable, weather-resistant construction suitable for continuous indoor or outdoor use throughout the year
Features UV-resistant PC/ABS or injection molded enclosures, with powder-coated aluminum grilles and all brass hardware elements
Meets the 100-hour salt spray test standard in accordance with ASTM B117
Certified to EN54-24 standards
Includes a color-matched, heavy-duty zinc chromate plated, and powder-coated "C" bracket
Equipped with a highly efficient 5 1/4" (133mm) polypropylene woofer
Incorporates a 1" (25mm) FerroFluid™ cooled dome tweeter
Utilizes AtlasIED TRX WAVEGUIDE™ for accurate, consistent directivity in high frequency coverage
AtlasIED POLYGUARD™ high frequency circuit protects the tweeter by diverting harmful transient signals

SKU: SM52TEN-B Categories: Commercial Audio, Pro AV, Pro Speakers

Description

**Applications**
– Indoor/Outdoor Environments
– Retail Spaces
– Dining Establishments
– Corporate Facilities
– Places of Worship

**General Description**
The environment-resistant, EN54-24 certified SM Series loudspeaker systems deliver premium sound quality and modern aesthetics in a compact form factor. These systems feature a highly efficient woofer and a ferrofluid-cooled, titanium dome tweeter. The vocal and musical clarity is enhanced by the advanced, mathematically designed AtlasIED TRX Control WaveGuide™ high frequency director, ensuring smooth and consistent sound coverage (90º horizontal x 90º vertical). The symmetrical design of the high-frequency section provides uniform sound distribution in both vertical and horizontal mounting positions. To safeguard high-frequency components, the AtlasIED PolyGuard™ protection circuit is included. The SM52TEN model is equipped with an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver-adjustable tap selection, ideal for distributed audio applications. The tap selection switch also offers a transformer bypass option for direct-coupled 6Ω operation.

Audio
Maximum Frequency Response	20 kHz
Minimum Frequency Response	93 Hz
RMS Output Power	100W

Certifications
NDAA Compliant	Yes
TAA Compliant	No

General Information
Brand Name	AtlasIED
Manufacturer	AtlasIED
Manufacturer Part Number	SM52TENB
Product Line	Strategy
Product Model	SM52TEN-B
Product Name	Strategy Series Surface Mount Loudspeaker System
Product Series	SM
Product Type	Speaker

Miscellaneous
Country of Origin	CN
Features	Available in Black or White, Color Matched, Five-Year Warranty, Zinc Chromate Plated and Powder Coated C Bracket

Physical Characteristics
Application/Usage	Corporate, House of Worship, Music, Restaurant, Retail
Color	Black
Depth	5.83"
Durability	Heavy Duty, UV Resistant, Weather Resistant
Height	11.2"
Product Color	Black
Speaker Installation	Indoor\|Outdoor
Weight (Approximate)	7 lb
Width	6.9"

Product Information
Mount Type	Surface Mount

Technical Information
Crossover Type	2-way
Impedance	6 ohms
Sensitivity	90 dB
Speaker Size	5.25"
Tweeter Driver Material	Mylar
Tweeter Driver Size	0.98"
Woofer Driver Material	Polypropylene
Woofer Driver Size	5.24"

Warranty
Limited Warranty	5 Year
