Description
The Atlas Sound SMA-15 speaker is engineered for optimal audio intelligibility and comprehensive coverage across various professional audio environments such as rental and staging events, DJ setups, houses of worship, public speaking venues, and educational institutions, where permanent installation is unnecessary.
Key Specifications:
– High-Performance High-Frequency Compression Driver
– Die-Cast Frame for Low-Frequency Driver
– Durable Injection-Molded Polypropylene Enclosure
– Built-in 1-3/8″ Pole Socket for Speaker Stand Mounting
– Ergonomic Grip Handles on Top and Sides
– XLR Microphone Input and XLR Line Input
– Dual RCA Line Input
– XLR Line Output
– Separate Microphone and Line Input Controls: Gain, Low, Mid, and High Band Adjustments
– Speak-ON Amplifier Output Connection
The SMA-15 boasts a two-way design featuring a 15″ die-cast low-frequency driver alongside a high-performance high-frequency compression driver, all housed within a robust injection-molded enclosure. It includes a built-in 250-watt RMS amplifier to drive the internal speakers and an external passive speaker via rear panel Speak-ON connectors.

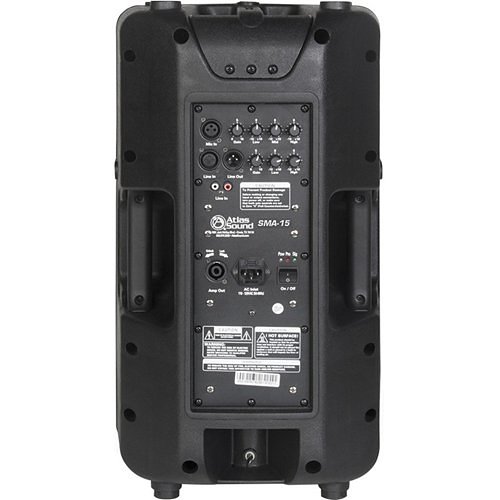

Equipped with rear panel inputs, including Mic In XLR, Line In XLR, and Line In RCA, the SMA-15 allows for customizable sound quality through independent gain control and frequency adjustments for each input. It also offers a Line Out XLR to connect an additional SMA speaker for shared audio sources. The Amp Out Speak-ON connection facilitates the linkage of a passive SMP speaker model.
Additionally, it incorporates a -6dB crossover point at 1575Hz, with a high-pass crossover section featuring a Polymeric Positive Temperature Coefficient resettable switch. This switch guards the high-frequency driver against damage from excessive power, ensuring sustained reliability and performance.
