Description

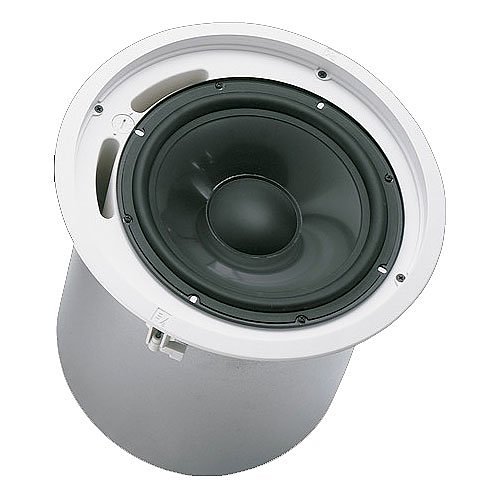

The Electro-Voice EVID C10.1 ceiling subwoofer system is an all-encompassing low-frequency solution for professional audio applications. Engineered to enhance the bass response of any EVID ceiling speaker, this package includes a bezel assembly, grille, rear enclosure, a 10-inch driver, and an internal line-matching transformer. The EVID C10.1 features a second-order crossover network, ensuring an optimal band-pass filter that complements any EVID ceiling loudspeaker.
The subwoofer utilizes a transformer that offers selectable wattage settings of 7.5 watts (70-V configuration only), 15, 30, or 60 watts, compatible with both 70-V and 100-V lines, or an 8 ohm direct bypass. Selection is made simple via a front baffle switch. The grille is crafted from perforated steel and finished with a semi-gloss white powder-coated enamel. Constructed from UL 94V-0 rated ABS, the baffle and bezel ensure fire safety, while the rear enclosure, made from zinc-plated, heavy-gauge steel, provides the ideal internal volume for extended low-frequency acoustics.
The system is equipped with a rear cover that allows for junction box fitting, granting access to a 4-pin terminal block that supports 12-gauge wire connections, enabling full-range pass-through to additional speakers. For secure installation in drop ceilings with mineral wool or fiber-based tiles, a tile bridge is included. EVID ceiling speakers are designed to function cohesively as a comprehensive system, ensuring wide dispersion, high efficiency, high maximum output, effortless installation, and extensive music reproduction across various ceiling constructions.
**Architects’ & Engineers’ Specifications:**
The EVID C10.1 subwoofer ceiling speaker system comprises a UL 94V-0 fire-rated ABS baffle/bezel assembly, zinc-plated rear enclosure, powder-coated grille with safety tether, a transformer with an 8-ohm bypass, and a 10-inch polypropylene low-frequency transducer. Performance specifications include a power rating of 100 watts of EIA RS-426A continuous pink noise (6 dB crest factor), frequency response ranging from 45 Hz to 180 Hz, and pressure sensitivity of 94 dB SPL at 1 meter (3.3 feet) on-axis with one watt of pink noise (ref. 20µPa). The unit’s minimum impedance is 6.0 ohms, measuring 320 mm (12.6 in.) in diameter and 303 mm (11.9 in.) in depth, with a weight of 7.0 kg (15.5 lbs). The ceiling subwoofer speaker is identified as the Electro-Voice® model EVID C10.1.
