Description

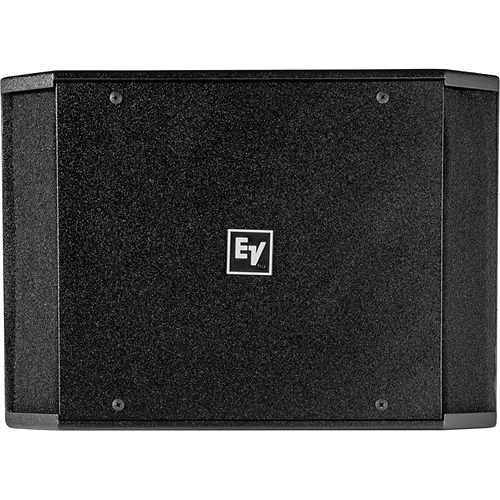

The Electro-Voice EVID-S12.1 subwoofer is a compact and high-performance 12-inch (305 mm) woofer loudspeaker designed to excel in professional and commercial audio environments. Ideal for demanding sound applications, it is perfect for both background and foreground music as well as sound reinforcement. This subwoofer is a versatile choice for indoor and outdoor venues such as restaurants, bars, patios, retail stores, fitness clubs, hotels, theme parks, and other leisure spaces. Thanks to its slot-loaded design, the 12.1 subwoofer offers flexible mounting options and delivers exceptionally smooth bass response.

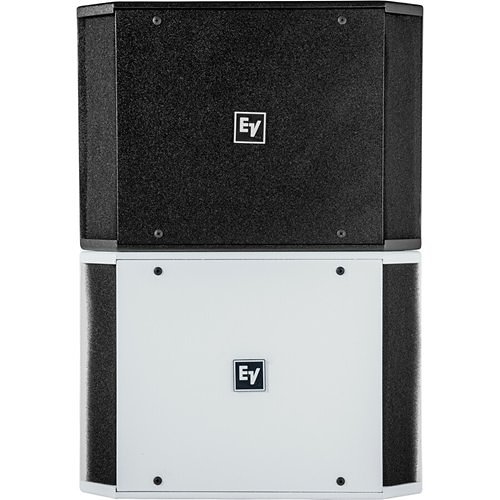

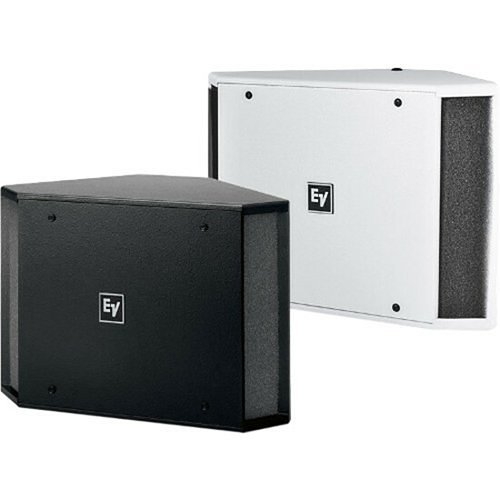

Featuring a 12-inch high-excursion woofer with a dual voice-coil design, the EVID-S12.1 allows both left and right audio channels to feed into the speaker, while offering crossed-over outputs supporting up to four satellite speakers simultaneously. For an enhanced audio presence, the subwoofer can be powered separately. Its reinforced steel-fastener construction supports a variety of mounting configurations, and it comes in a choice of black or white finishes, which can be easily painted to blend with any decor. All necessary mounting hardware is included.

The EVID series encompasses a wide array of surface mount speakers, engineered to integrate seamlessly as a cohesive audio system with different surface mount constructions. These speakers are also designed to complement other EVID ceiling and in-wall speakers, creating a comprehensive sound solution.

Audio
Maximum Frequency Response140 Hz
Minimum Frequency Response40 Hz
PMPO Output Power800 W
RMS Output Power200W
Subwoofer TypePassive

General Information
Brand NameElectro-Voice by Bosch
ManufacturerThe Bosch Group
Manufacturer Part NumberEVID-S12.1B
Packaged Quantity1
Product ModelEVID-S12.1
Product NameEVID-S12.1 Subwoofer 12" Cabinet
Product SeriesEVID
Product TypeWoofer

Miscellaneous
Package Contents EVID-S12.1 Subwoofer 12" Cabinet 1 x Wall Mounting Hardware

Physical Characteristics
Application/UsageAmusement Park, Bar, Health Club, Hospitality, Leisure Center, Patio, Restaurant, Retail Space
ColorBlack
Depth11.93"
Form FactorIn-ceiling, In-Wall, Surface Mount, Wall Mount
Height16.3"
Product ColorBlack
Speaker InstallationIndoor|Outdoor
Weight (Approximate)39.24 lb
Width23"
Woofer Diameter12"

Technical Information
Impedance8 ohms
Sensitivity127 dB
Woofer Driver Size12"

Warranty
Limited Warranty3 Year
