Description

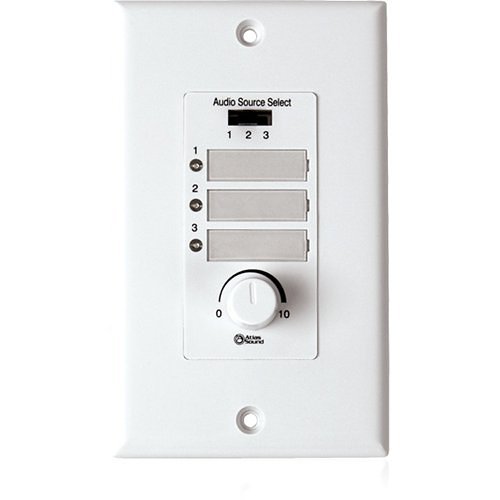

The WPD-RISRL is an aesthetically pleasing wall plate crafted to enhance the functionality of AA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers by enabling the Remote Input Selection (RIS) capability. This wall plate incorporates an intuitive audio source slide selector and a source volume control for ease of use. It is equipped with an LED indicator that shows the selected source and its operational status. Designed to seamlessly fit into a single-gang electrical outlet, it features an 8-conductor interface connection comprising a single 4-position removable Phoenix connector and dual 2-position Phoenix-style connectors. When interfaced with the RIS output of a compatible AAPHD amplifier, it facilitates remote input selection and volume control for inputs 2, 3, and 4, keeping the equipment rack securely locked. Key features include its compatibility for remote input selection and volume adjustment with select AAPHD amplifiers, a slide switch for input selection, onboard 10kΩ potentiometer for level control, a red system status indicator, and a reliable 8-conductor interface connection protected by a label guard.
