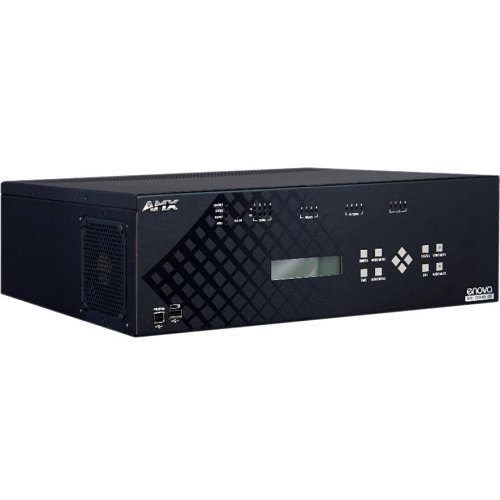

AMX FG1906-11 DVX-2250HD-SP 6x3 All-in-One Presentation Switchers with NX Control with Multi-Format, HDMI Inputs

Brand: AMX by Harman

AMX FG1906-11 DVX-2250HD-SP 6×3 All-in-One Presentation Switchers with NX Control with Multi-Format, HDMI Inputs

Name: AMX FG1906-11 DVX-2250HD-SP 6x3 All-in-One Presentation Switchers with NX Control with Multi-Format, HDMI Inputs
Brand: AMX by Harman
SKU: FG1906-11
Availability: InStock

in stock

Special Order

$3,360.01

Utilize this audio-video switchbox to seamlessly switch between sources without any loss of video quality, eliminating the need for manual cable switching.
Effortlessly connect to the display with ease.
Experience high-definition video with a resolution of 1920 x 1200.
Featuring Dual NIC for isolating AV equipment from the primary network, along with support for IPv6, wired 802.1X for secure network access, and user-defined LDAP login group support, ensuring robust security.
Complies with advanced networking standards, supporting IPv6 and port-based Network Access Control using X.509 certificates for secure network access.
Leveraging exclusive SmartScale Technology, it automatically adjusts to the optimum resolution and video settings for each display, even across different displays, without the need for manual configuration, thus avoiding the cost of external scalers.
Connect quickly and easily with any display.
Enjoy superior video content on a 1920 x 1200 resolution screen.
Built-in 2x25W, 8-Ohm audio capability.

SKU: FG1906-11 Categories: Commercial Video Conferencing, Pro AV, Video Conference Controllers Brand: AMX by Harman

Description

The Enova DVX-2250HD 6×3 All-In-One Presentation Switcher is an integrated audio-visual and control solution that streamlines your setup by consolidating multiple components into a single device. This compact 3U presentation switcher offers a variety of essential functions, including scaling, analog-to-digital signal conversion, twisted pair transmission, amplification, and professional-grade audio processing. Featuring exclusive AMX technology, the DVX-2250HD provides a straightforward installation and flexible application, making it ideal for smaller conference rooms and classrooms.

Display & Graphics
Maximum Video Resolution	1920 x 1200

Environmental Conditions
Operating Temperature (T-T)	32-104°F
Storage Temperature (T-T)	14-158

General Information
Brand Name	AMX
Manufacturer	Harman International Industries, Inc
Manufacturer Part Number	FG1906-11
Product Line	Enova
Product Model	DVX-2250HD-SP
Product Name	Enova DVX-2250HD-SP Audio/Video Switchbox
Product Type	Audio/Video Switchbox

Interfaces/Ports
Connectivity (RJ-45)	Yes
DVI In	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Connectivity (RJ-45) Ports	1
Number of DVI Inputs	2
Number of HDMI Inputs	4
Number of HDMI Outputs	2
Number of USB Ports	3
USB	Yes

Miscellaneous
Environmental Certification	RoHS, WEEE
Environmentally Friendly	Yes
Package Contents	Enova DVX-2250HD-SP Audio/Video Switchbox1 x Power Cord, Universal1 x Commoning Strip, Cypher, 8 Pos., 3.5 mm, Phoenix Connector2 x Front Rack Mounting Bracketsand more below, 1 x CC-DVIM-VGAF, DVI to HD-15 Female Adapter (FG10-2170-13), 2 x CC-NIRC, IR Emitter with 3.5mm Phoenix Connector (FG10-000-11), 4 x Rubber Feet, 8 x #8-32 x .375 screws

Physical Characteristics
Depth	14"
Form Factor	Desktop Mount, Rack Mount
Height	5.2"
Weight (Approximate)	18.20 lb
Width	17"

Product Information
Number of Displays Supported	3

Technical Information
Connectivity Technology	Wired
Device Supported	Display
Media Type Supported	Twisted Pair
Number of Input Devices Supported	6
