Description

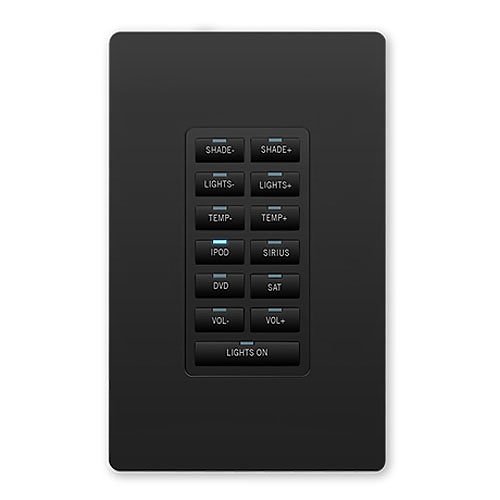

The HPX-U400-MET-13 module is an advanced Metreau 13-Button keypad designed for seamless integration into the HydraPort chassis.
**Key Features:**
– **AxLink Connectivity:** Ensures smooth communication with NetLinx master controllers.
– **Intuitive Button Layout:** Equipped with standard buttons including numbers 0 to 9, ENTER, SAVE, and +/-.
– **Blue LED Indicators:** Provide clear indication of button activation for enhanced user feedback.
– **Design Compatibility:** Perfectly aligns with the NI-3101-SIG Controller for unified aesthetics.
– **Flexible Button Functionality:** The bottom button offers dual functionality, acting as a single or two separate buttons.
**Specifications:**
– **Dimensions:** Occupies 4 HydraPort units.
– **Front Panel Components:** Consists of 13 tactile pushbuttons with blue LED indicators, including 12 single-width and 1 double-width button for versatile use. Pre-printed buttons are easily replaceable, and the dual-position bottom button allows precise control over channels.
– **Rear Panel Components:** Features an 8-position mini DIP switch to set the keypad’s device address on the AxLink bus and a 4-pin 3.5mm Phoenix AxLink connector for reliable wiring connections.
