Description

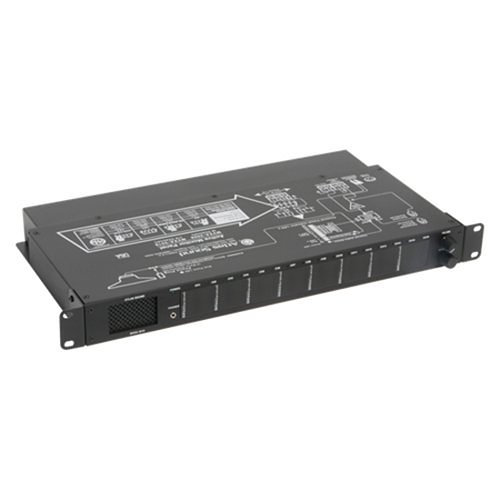

The MVXA-2016 monitor panel is an advanced solution for comprehensive aural and visual monitoring of up to sixteen distinct speaker and line-level circuits. Its superior single-circuit board design ensures exceptional performance, with a straightforward visual interface contained within an ultra-slim single rack unit chassis. This sixteen-channel monitor panel incorporates high-quality components, including DC coupled capacitors at each input to preserve signal integrity and eliminate distortion, noise, or ground-loop issues, making transformers unnecessary.
Key features include:
– A 12-segment LED meter for each channel, allowing precise visual monitoring across all channels simultaneously.
– Integrated options for versatile audio monitoring, including an internal speaker, headphone jack, line-level output, and external speaker output.
– Each meter can be independently referenced to line levels of 1Vrms, 25Vrms, 70Vrms, or 100Vrms, facilitating the monitoring of multiple signal types simultaneously.
– Green LEDs display standard VU ballistics ranging from -30 to -2dB, while red LEDs indicate peak responses from 0 to +3dB above reference levels.
– Advanced electronic design enables 8 or 16-channel audible and visual monitoring within a single rack space.
– The top panel includes a diagram illustrating functional operations and jumper settings, ensuring ease of installation and servicing.
