Description

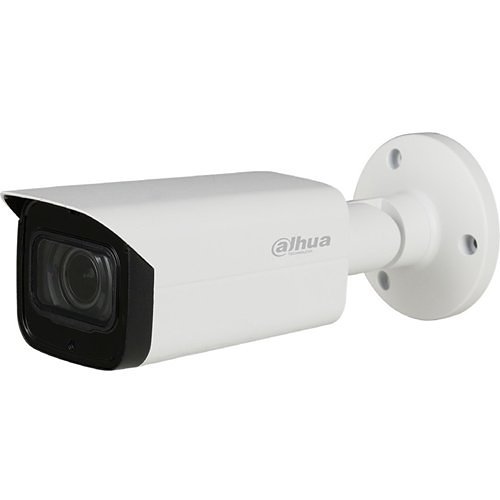

Discover the exceptional performance of Dahua’s 2 MP HDCVI camera, engineered for expansive surveillance coverage and detailed imagery. The 2 MP HDCVI series takes advantage of existing coaxial infrastructures, delivering high-quality, forensic-level video over long distances. Featuring a 3.6 mm fixed lens, multi-language on-screen display, and switchable HD/SD output, this camera is perfect for a variety of security applications. Thanks to Starlight Technology and True Wide Dynamic Range, it excels in all lighting conditions, while its IP67 rating ensures durability in harsh environments.

**Advanced Starlight Technology:** Excelling in low-light situations, Dahua’s Starlight Technology offers superior light sensitivity, capturing critical details even in dim conditions. It utilizes advanced optical features to provide balanced lighting across scenes, resulting in clear imagery in dark environments.

**Three-in-One Coaxial Solution:** The HDCVI technology supports simultaneous video, audio, and data transmission over a single coaxial cable, with two-way data communication allowing interaction with HCVRs for signaling and alarms.

**Extended Transmission Range:** HDCVI technology provides real-time, long-distance transmission without compromising video quality. It matches the resolution of most IP network camera systems using existing cabling like RG-59, RG-6, or CAT 6 UTP.

**Enhanced Simplicity:** HDCVI effortlessly bridges traditional analog systems with improved HD video capacities, safeguarding security investments while enabling plug-and-play full HD surveillance without network configuration hassles.

**Super Adapt Functionality:** Equipped with a dynamic algorithm, the Super Adapt feature automatically calibrates optical settings based on environmental shifts to ensure optimal video output, simplifying installation by removing the need for manual adjustments post-setup.

**Broadcast-Grade Audio Capabilities:** Delivering clear audio for surveillance evidence, this HDCVI camera transmits sound over coaxial cables, bypassing the need for separate audio wiring. Its advanced audio processing technology reduces noise, ensuring accurate duplication of source audio for effective surveillance.

**Versatile Format Support:** Supporting video formats like HDCVI, CVBS, AHD, and TVI, the camera can easily switch between these modes using the switch on the video output cable, offering compatibility with HDCVI DVRs and most HD/SD DVRs on the market.

Camera
Image Sensor TypeCMOS
Night Vision Distance262.47 ft

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberA22DF63
Product LineStarlight
Product ModelA22DF63
Product Name2MP HDCVI Fixed Bullet Camera
Product SeriesPro
Product TypeSurveillance Camera

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.6 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Highlight Compensation (HLC), Privacy Masking, Wide Dynamic Range
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementNo

Others
ADI Part Number ReplacesVD-A21CF02, VD-A22CF63
Model Number ReplacesA21CF02, A22CF63

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)1.70 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal: 86°, Vertical: 46°, Diagonal: 101°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.6 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs4

Video
Analog Video Signal FormatAHD, CVBS, HDCVI, TVI

Warranty
Limited Warranty5 Year
