**System Overview**

Enhance your surveillance capabilities with the Dahua 5 MP HDCVI camera, offering expansive coverage and exceptional image clarity. This advanced 5 MP HDCVI series utilizes existing coaxial infrastructures to effortlessly provide forensic-level images across extensive distances. Featuring a 2.8 mm fixed lens, a multi-language On-Screen Display, and HD/SD switchable output, this camera is perfect for a wide range of applications. Equipped with Night Color technology and True Wide Dynamic Range, it performs exceptionally well in any lighting condition. Its IP67 rating ensures its resilience in even the harshest environments.

**Features and Benefits: Night Color Technology**

Dahua’s Night Color Technology integrates a high-performance sensor and a large aperture lens, delivering sharp, vivid color images in low-light settings. This advanced light-sensitive technology maximizes available light capture, reproducing images with enhanced detail and contrast. The inclusion of white-light LEDs facilitates full-color imagery even in complete darkness, while also providing a visual deterrent. This technology automatically activates white-light illumination upon detecting human presence within a predefined area, capturing critical color details.

**Three Signals over One Coaxial Cable**

The HDCVI technology enables simultaneous transmission of video, audio, and data through a single coaxial cable. This dual-directional data transmission allows seamless communication between the HDCVI camera and HCVR, enabling control signals and alarm triggers.

**Super Adapt Technology**

With Super Adapt technology, the camera assesses external lighting conditions and autonomously adjusts settings for optimal video quality, indoors or outdoors. This technology eliminates the need for manual adjustment of optical parameters, streamlining installation and reducing costs.

**Simplicity**

HDCVI technology elegantly bridges traditional analog systems with upgraded high-definition video, safeguarding your security investments. The straightforward plug-and-play approach allows for complete HD video surveillance without network configuration complexities.

**Broadcast-quality Audio**

Audio is a vital supplement in video surveillance, and the HDCVI camera transmits audio signals through the same coaxial cable, eliminating the need for additional wiring. The camera employs advanced audio processing and transmission techniques to reduce noise and deliver high-quality audio, ensuring accurate reproduction of source sounds for effective surveillance.

Camera
Image Sensor TypeCMOS
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2880 x 1620

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/4 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberA52CJ62
Product LineHDCVI
Product ModelA52CJ62

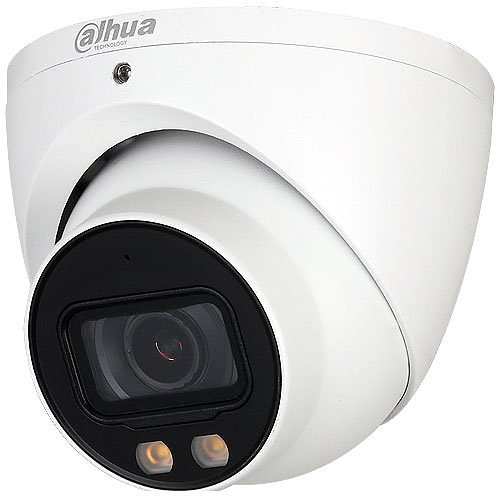

Product Name5MP Night Color 2.0 HDCVI Eyeball Camera
Product SeriesPro
Product TypeSurveillance Camera

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Built-in OSD Function, Day/Night, Highlight Compensation (HLC), Privacy Masking, Wide Dynamic Range
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementNo

Others
ADI Part Number ReplacesVD-A42BJA2
Model Number ReplacesA42BJA2

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Waterproof
Form FactorEyeball
Weight (Approximate)1.01 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.2"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 112° Vertical: 57° Diagonal: 132°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1
Maximum Frame Rate25 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeColor
Number of IR LEDs2

Video
Analog Video Signal FormatAHD, CVBS, HDCVI, TVI

Warranty
Limited Warranty5 Year
