Description
The LILIN Analog AHD845AX2.8 camera is a high-performance 5MP Auto Focus IR Bullet Camera, designed for versatile video output with support for AHD, CVBS, TVI, and CVI formats.

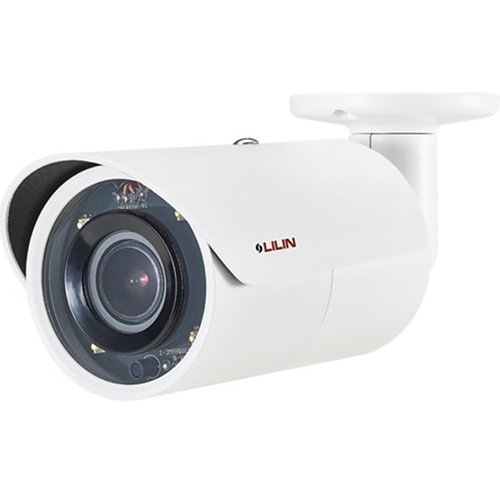

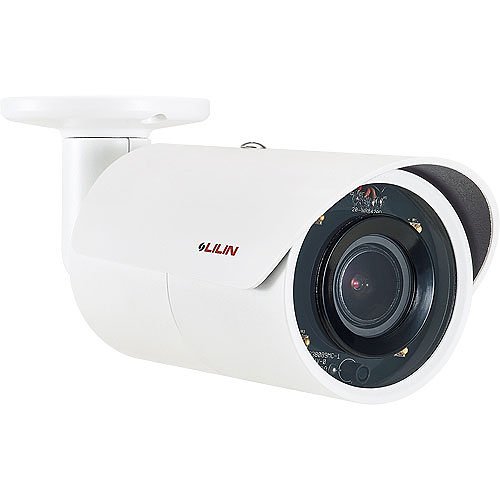

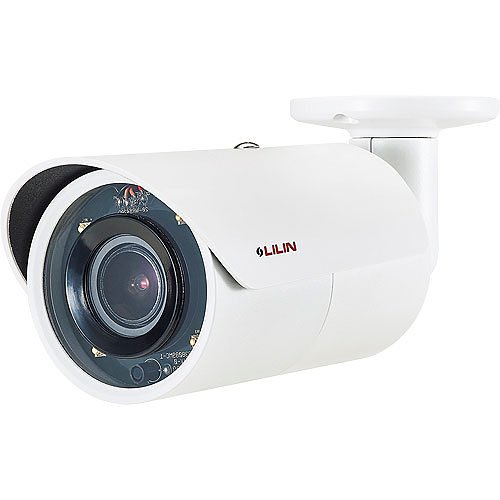

LILIN AHD845AX2.8 5MP Day and Night Auto Focus IR Bullet Camera, 2.8-12mm Lens, White
in stock
Special Order
$150.89
- 5MP CMOS image sensor
- Supports AHD, CVBS, TVI, and CVI video outputs
- 2.8–12 mm motorized lens with auto zoom and focus capabilities
- 20fps at a resolution of 2592 × 1944
- Uncompressed video for high-quality, real-time surveillance with no delay
- Efficient IR LED providing visibility up to 65 feet
- UTC function compatible with AHD-Coaxial protocol
- IP66-rated for resistance against rain and dust
| Camera | |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Display & Graphics | |
| Color Supported | Color, Monochrome |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 90% |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/50000 Second |
| General Information | |
| Brand Name | Merit LILIN |
| Manufacturer | Merit LILIN Ent. Co., Ltd |
| Manufacturer Part Number | AHD845AX2.8 |
| Product Model | AHD845AX2.8 |
| Product Name | 5MP Day & Night Auto Focus IR Bullet Camera |
| Product Series | AHD |
| Product Type | Surveillance Camera |
| Lens | |
| Focal Length | 12 mm |
| Lens Included | Yes |
| Maximum Focal Length | 12 mm |
| Miscellaneous | |
| Features | 2D Noise Reduction, 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR) |
| Indoor/Outdoor | Outdoor |
| Physical Characteristics | |
| Color | White |
| Depth | 8.4" |
| Durability | Dust Resistant, Rain Resistant, Waterproof |
| Form Factor | Bullet |
| Height | 2.7" |
| Weight (Approximate) | 1.04 lb |
| Width | 2.7" |
| Power Description | |
| Input Voltage | 12V DC |
| Storage | |
| Recording Formats | Full HD |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Field of View | 95°-47.2°(H) 68°-35°(V)127°-59°(D) |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 20 fps |
| Minimum Focal Length | 2.8 mm |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Number of IR LEDs | 7 |
| Optical Zoom | 4.3x |
| Video | |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
| Horizontal Resolution | 960 TVL |
