Description

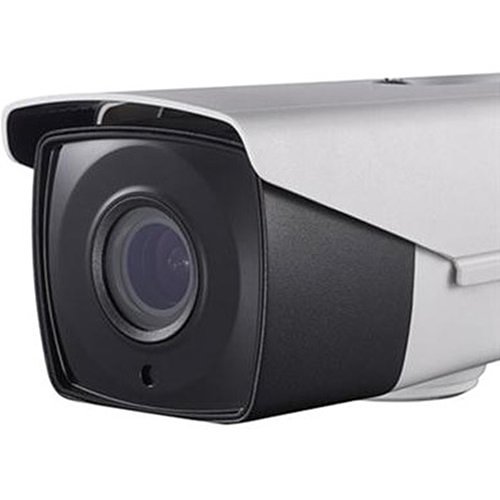

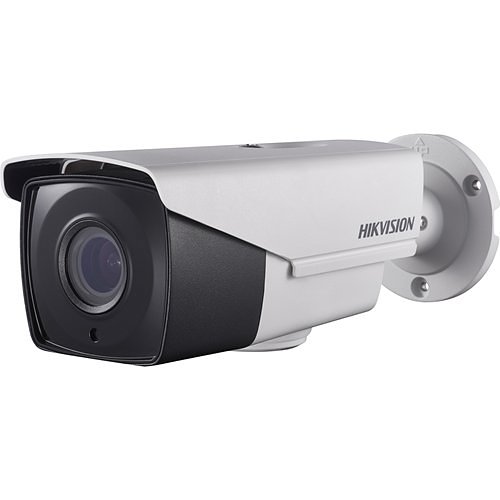

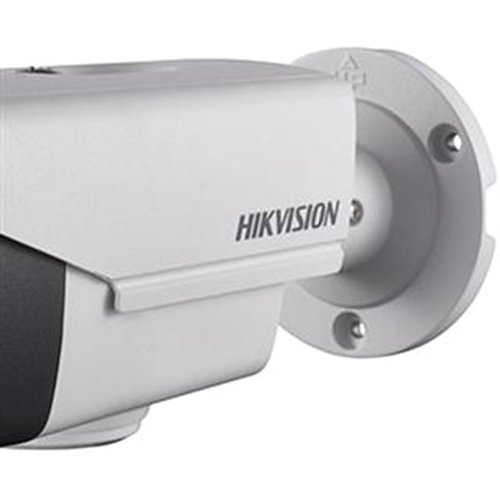

The Hikvision DS-2CC12D9T-AIT3ZE 2 MP Outdoor Ultra-Low Light Power-over-Coax (PoC) Bullet Camera offers high-definition analog video output. TurboHD technology enables the transmission of analog signals over existing coaxial cables, eliminating the necessity for new cabling infrastructure for high-definition video coverage.

– Exceptional low-light performance with a minimum illumination of 0.003 lux (F1.2, AGC ON) and 0 lux with IR.
– Delivers Analog HD Output with up to 1080p resolution.
– Features an auto-focus motorized vari-focal lens ranging from 2.8 mm to 12 mm.
– Supports frame rates of 1080p @ 25 fps (PAL) and 1080p @ 30 fps (NTSC).
– Equipped with EXIR 2.0 technology providing an IR range of up to 130 ft (40 m).
– Operates on 24 VAC/12 VDC ± 30%/PoC.at power inputs.

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/50000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CC12D9T-AIT3ZE
Product LineTurbo HD
Product ModelDS-2CC12D9T-AIT3ZE
Product Name2MP Ultra Low-Light PoC Bullet Camera
Product TypeSurveillance Camera

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
FeaturesAutomatic White Balance, Day/Night, Privacy Masking, Wide Dynamic Range
Indoor/OutdoorOutdoor
Package Contents 2MP Ultra Low-Light PoC Bullet Camera 24 VAC to 12 VDC Converter/Filter

Others
ADI Part Number ReplacesHX-BL16D5TV
Model Number ReplacesDS-2CE16D5T-AVFIT3

Physical Characteristics
ColorWhite
DurabilityDustproof, Waterproof, Weather Resistant
Form FactorBullet
Height3.5"
Weight (Approximate)1.54 lb
Width3.6"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Length10.6"
Mount TypeConduit Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View32.1° to 98°
HD RecordingYes
Lens Mount TypeF14
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom4.3x
Video Signal FormatNTSC

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty36 Month
