Description

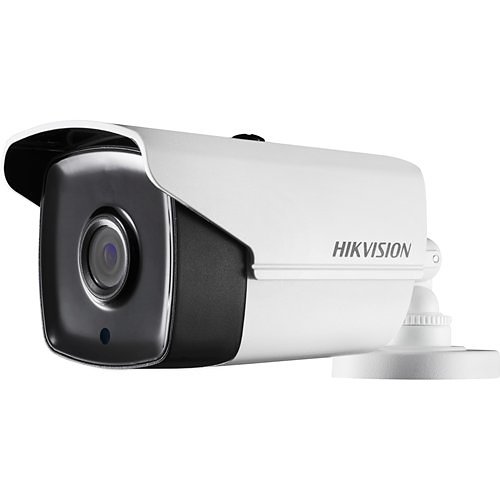

The Hikvision DS-2CC12D9T-IT3E 2 MP Outdoor Ultra-Low Light Power-over-Coax (PoC) Bullet Camera delivers superior high-definition analog output. With TurboHD technology, it transmits analog signals over existing coaxial infrastructure, eliminating the requirement for new wiring to achieve high-definition video quality.

– Ultra-low light capability with a minimum illumination of 0.003 lux (F1.2, AGC ON), and 0 lux when using infrared
– Supports Analog HD Output with resolutions up to 1080p
– Available with fixed focal lenses of 2.8 mm, 3.6 mm, or 6 mm
– Frame rates of 1080p at 25 fps for PAL and 30 fps for NTSC
– EXIR 2.0 technology providing infrared coverage up to 260 ft (80 m)
– Operates on 12 VDC ± 30% or via PoC.at

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/25 Second
Shortest Shutter Speed1/50000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CC12D9T-IT3E 2.8MM
Product LineTurbo HD
Product ModelDS-2CC12D9T-IT3E
Product Name2MP Ultra Low-Light PoC Bullet Camera
Product TypeSurveillance Camera

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesAutomatic White Balance, Day/Night, Privacy Masking, Wide Dynamic Range
Indoor/OutdoorOutdoor
Package Contents 2MP Ultra Low-Light PoC Bullet Camera 24 VAC to 12 VDC Converter/Filter

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Waterproof, Weather Resistant
Form FactorBullet
Height3.2"
Weight (Approximate)1.76 lb
Width3.4"

Power Description
Input Voltage12V DC

Product Information
Length8.9"
Mount TypeConduit Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View103.5°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night Vision TypeInfrared
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty36 Month
