Description

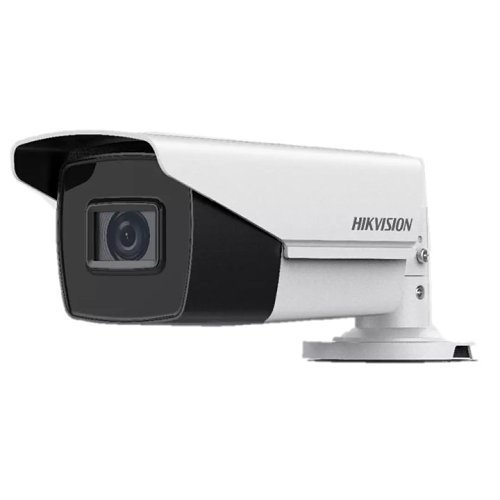

The Hikvision DS-2CE19D3T-AIT3ZF 2 MP Outdoor Ultra-Low Light Bullet Camera delivers high-definition analog output, leveraging TurboHD technology to transmit analog signals over existing coaxial cables, thereby removing the necessity for new cabling to achieve high-definition video.

– Minimum Illumination: Color: 0.005 lux @ (f/1.2, AGC on), 0 lux with IR
– Supports up to 1080p Resolution
– Features a 2.7 mm to 13 mm motorized varifocal lens
– Offers 1080p @ 30 fps performance
– Equipped with EXIR 2.0 technology for an IR Range up to 230 ft (70 m)
– Compatible with 24 VAC ± 15% and 12 VDC ± 20% power supplies

Camera
Night Vision Distance229.66 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/50000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberDS-2CE19D3T-AIT3ZF
Product LineTurbo HD
Product ModelDS-2CE19D3T-AIT3ZF
Product Name2 MP EXIR Bullet Camera
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Features3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Mirror, Wide Dynamic Range
Indoor/OutdoorOutdoor

Others
ADI Part Number ReplacesHX-BL16D1TV, HX-BL1D8A3Z
Model Number ReplacesDS-2CE16D1T-AVFIR3, DS-2CE16D8T-AIT3Z

Physical Characteristics
ColorWhite
DurabilityDustproof, Waterproof, Weather Resistant
Form FactorBullet
Height3.3"
Weight (Approximate)1.53 lb
Width3.6"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter3.4"
Length10"
Mount TypeConduit Mount, Corner Mount, Junction Box Mount, Pole Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View102° to 31°
HD RecordingYes
Lens Mount TypeF14
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatAHD, CVBS, CVI, TVI
