Description

High-Resolution Surveillance

Advanced video surveillance technology ensures ultra-clear video quality with resolutions reaching up to 5MP, utilizing existing coaxial installations. These high-resolution capabilities offer detailed forensic insights when magnifying the camera’s perspective.

Enhanced Low-Light Performance

The innovative Star-Light Plus technology provides vibrant color images even in near-total darkness, ensuring excellent visual clarity regardless of lighting conditions.

Comprehensive HD over Coax Solutions

HD over Coax systems provide an optimal approach for upgrading legacy analog setups to high-definition standards. These systems support HD-Analog, HD-TVI, HD-CVI signals up to 4K, and traditional analog signals to 960H, facilitating high-definition transmission through existing coaxial infrastructure.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-B6563WTIRW
Product LineStar-Light Plus
Product ModelDWC-B6563WTIRW

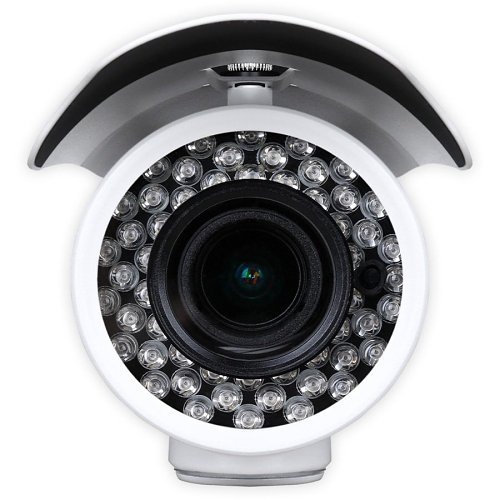

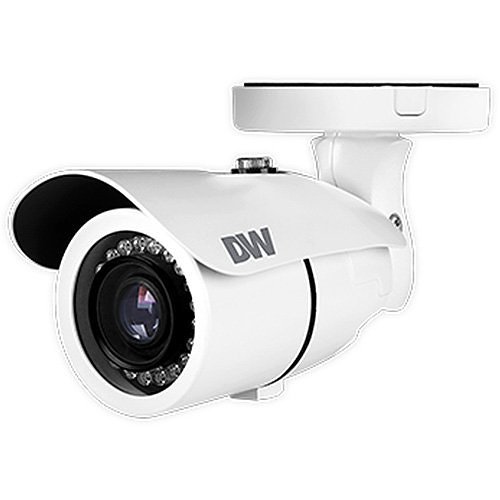

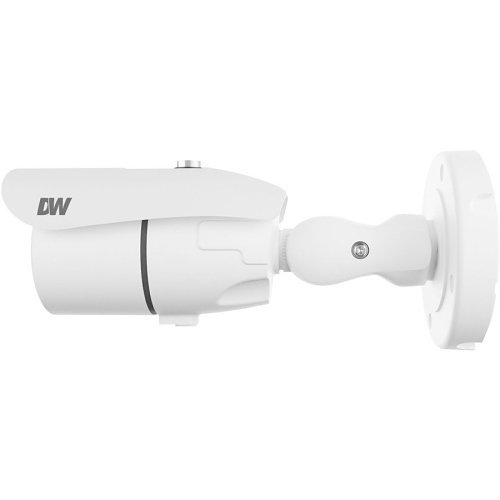

Product NameStar-Light Plus 5MP UHDoC bullet camera with a vari-focal lens and IR
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Flip, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Defog, Digital Noise Reduction, Mirror, Motion Detection, PTZ, Wide Dynamic Range

Others
ADI Part Number Replaces6K-B6563WTIR
Model Number ReplacesDWC-B6563WTIR

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Waterproof, Weather Resistant
Form FactorBullet
Product ColorWhite
Weight (Approximate)1.65 lb

Power Description
Input Voltage12V DC, 24V AC

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View102° - 31.4°
HD RecordingYes
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length2.70 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x

Video
Analog Video Signal FormatCVBS, HDCVI, HDoC, HD-TVI

Warranty
Limited Warranty5 Year
