Description

The HD+ series cameras offer exceptional 4MP (2560 x 1440) and 2MP (1920 x 1080) resolution, ensuring superior image clarity and detail. These advanced imaging features not only outperform traditional analog systems but also match the resolution of network systems without the typical latency issues. This results in significantly clearer and more vivid images. The 4MP HD+ series is perfectly suited for medium to large-scale businesses and projects that demand a highly dependable surveillance solution. Additionally, these cameras can deliver 4MP (QHD) video at 30fps, providing smooth and reliable video monitoring.

Camera
Night Vision Distance98 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberHCO-6080R
Product ModelHCO-6080R

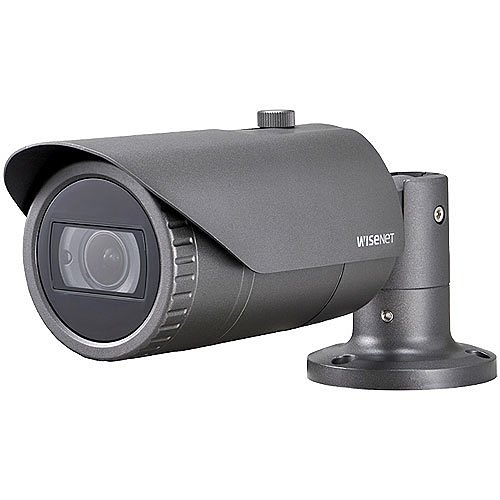

Product Name2MP Analog HD IR Bullet
Product SeriesHD+
Product TypeBullet Camera

Lens
Focal Length3.2-10 mm
Lens IncludedYes
Maximum Focal Length10 mm

Miscellaneous
Features,, , Dual power, 0.11Lux at F1.4(Color), 0Lux(B/W - IR LED on), 3.2-10mm(3.1x) motorized V/F lens, Day and Night(ICR), WDR(120dB), Easy installation (Plug and play), Dual power, RS-485, Full HD resolution, IR viewable length - 98 feet,, SSNR, Motion detection, Transmission ditance Max.500m
Impact Protection RatingIK10

Network & Communication
Remote ManagementNo

Physical Characteristics
ColorGray
Color FamilyGray
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorBullet
Height10.23"
Product ColorDark Gray
Weight (Approximate)2.09 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter3.07"
Mount TypeBox Mount, Pole Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 110.2° - 32°, V: 55.4° - 18°, D: 128.4° - 36.6°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeVarifocal
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.2 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.1x

Video
Analog Video Signal FormatAHD, CVBS, CVI, TVI

Warranty
Limited Warranty3 Year
