Description

The WiseNet HD+ IR Bullet Cameras provide an efficient upgrade solution for security systems by enabling high-definition video surveillance using existing coaxial infrastructure, eliminating the need for expensive coax-to-Ethernet upgrades. This innovative technology boasts a range of advanced features, such as Day/Night functionality, motion detection, defog capability, and integrated IR illuminators, all varying by model. Users can easily manage setup functions via On-Screen Display (OSD) using the built-in joystick or through coaxial cable control with WiseNet HD+ DVRs. The cameras are designed for low power consumption and offer compact form factors, with transmission capabilities extending up to 1,640 feet, further enhancing the product lineup for video surveillance professionals.

Camera
Night Vision Distance98.43 ft

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberSCO-6085R
Product ModelSCO-6085R

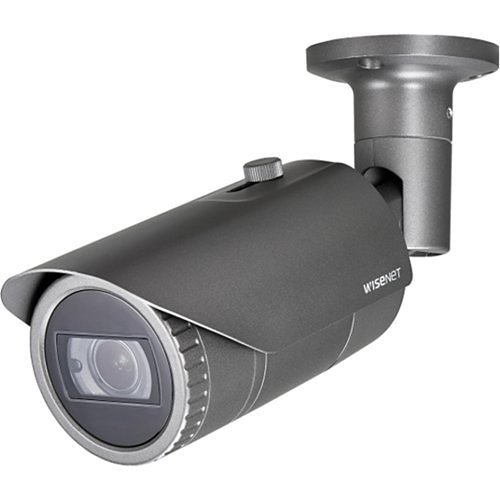

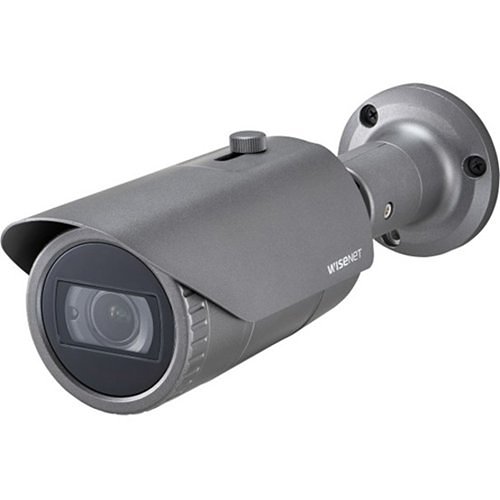

Product Name1080p Full-HD Analog Bullet IR Camera
Product SeriesHD+
Product TypeBullet Camera

Lens
Focal Length3.2-10 mm
Maximum Focal Length10 mm

Miscellaneous
Features/, 0.11Lux at F1.4 (Color), 0Lux at F1.4 (B/W - IR LED on), 1080p at AHD (Default), 24VAC/12VDC Dual Power support, 3.2 - 10mm (3.1x) varifocal lens, Built-in IR, Composite Video Output (Switchable), Day and Night (ICR), DWDR, SSNRIV, Motion Detection, Privacy Zones, Operating temperature (-30°C - 55°C) -22°F - 131°F, rated
Impact Protection RatingIK10

Physical Characteristics
ColorGray
Color FamilyGray
DurabilityDustproof, Impact Resistant, Waterproof, Weatherproof
Form FactorBullet
Product ColorDark Gray
Weight (Approximate)1.95 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter3.07"
Length10.2"
Mount TypePole Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 110.2°-32.0°, V: 55.4°-18.0°, D: 128.4°-36.6°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.2 mm
Optical Zoom3.1x
