Brand: Digital Watchdog

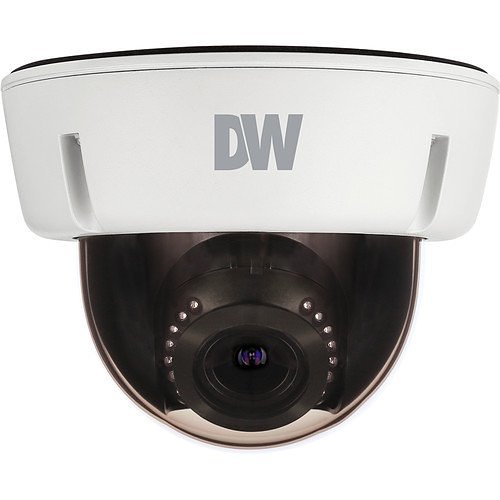

Digital Watchdog DWC-V6263WTIR Star-Light 2.1MP UHDoC IR Vandal Dome Camera, 2.8-12mm Varifocal Lens, NDAA Compliant, White

Name: Digital Watchdog DWC-V6263WTIR Star-Light 2.1MP UHDoC IR Vandal Dome Camera, 2.8-12mm Varifocal Lens, NDAA Compliant, White
Brand: Digital Watchdog
SKU: DWC-V6263WTIR
Availability: InStock

in stock

In Stock

$282.00

Universal HD over Coax Technology supporting HD-Analog, HD-TVI, HD-CVI, and all Analog signals up to 960H resolution
STAR-LIGHT ultra low light performance technology
2.1MP 1/3" image sensor delivering real-time 30 fps
2.8~12mm varifocal P-Iris lens
True Wide Dynamic Range (WDR) for enhanced image quality
On-Screen Display (OSD) control through coaxial cable (Up-the-Coax or UTC)
Hydrophobic dome coating with CleanView™ technology to repel water, dust, and grease
100 feet Smart IR™ with intelligent synchronization for night vision
Smart DNR™ 3D digital noise reduction technology
True Day/Night functionality with mechanical IR cut filter

SKU: DWC-V6263WTIR Categories: Dome Cameras, HDoC Cameras, Video Surveillance Brand: Digital Watchdog

Description

The Star-Light™ UHDoC® 2.1MP/1080p vandal-resistant dome camera features a 2.8~12mm vari-focal p-iris lens with infrared capabilities. These Star-Light™ Universal HD over COAX® cameras provide sharp, high-definition images and support 30fps real-time streaming across HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p, and CVBS at 960H. These vandal dome cameras boast an IP66 rating alongside CleanView™ dome technology, which effectively resists water, dust, and grime. Designed for seamless integration with existing coaxial systems, the Star-Light™ Universal HD over Coax® cameras are compatible with VMAX A1™ Universal HD over Coax® DVRs, offering a cost-effective, high-resolution security solution.

Camera
Night Vision Distance	100 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66
NDAA Compliant	Yes

Display & Graphics
Color Supported	Color, Monochrome
Maximum Video Resolution	1920 x 1080

Environmental Conditions
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Temperature	-4°F (-20°C)
Operating Humidity	90%

Exposure
Longest Shutter Speed	1/30 Second
Shortest Shutter Speed	1/30000 Second

General Information
Brand Name	Digital Watchdog
Manufacturer	Digital Watchdog
Manufacturer Part Number	DWC-V6263WTIR
Product Line	Star-Light Plus
Product Model	DWC-V6263WTIR
Product Name	2.1 MP Indoor/Outdoor Universal HD over Coax Dome Camera with IR
Product Series	V6
Product Type	Surveillance Camera

Lens
Focal Length	2.8-12 mm
Lens Included	Yes
Maximum Focal Length	12 mm

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Features	3D Digital Noise Reduction, Auto Gain Control, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Defog, Privacy Masking, Wide Dynamic Range
Impact Protection Rating	IK10
Indoor/Outdoor	Indoor, Outdoor

Others
ADI Part Number Replaces	6K-V5661TIR
Model Number Replaces	DWC-V5661TIR

Physical Characteristics
Color	White
Durability	Dustproof, Impact Resistant, Tamper Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor	Dome
Height	4.3"
Weight (Approximate)	1.65 lb

Power Description
Input Voltage	12V DC, 24V AC

Product Information
Diameter	5.7"
Mount Type	Ceiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Wall Mount

Storage
Recording Formats	Full HD

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	2MP
HD Recording	Yes
Lens Type	Varifocal
Maximum Frame Rate	30 fps
Minimum Focal Length	2.8 mm
Night Vision	Yes
Night Vision Type	Infrared
Optical Zoom	4.3x

Video
Analog Video Signal Format	AHD, CVBS, HDCVI, HD-TVI

Warranty
Limited Warranty	5 Years
