Description

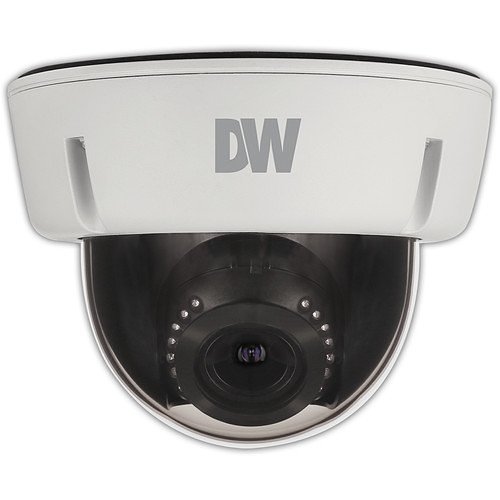

The Star-Light Plus™ UHDoC® 5MP vandal dome surveillance camera features a 2.7~13.5mm vari-focal p-iris lens, delivering superior color imaging in near-total darkness alongside IR capabilities. This advanced camera supports HD-Analog, HD-TVI, and HD-CVI signals, ensuring high-resolution video output and versatile integration in security systems. Built with a weather-resistant design and an IP66 rating, these dome cameras offer reliable durability. They can be easily managed through coax cable using UTC technology. All Universal HD over Coax® cameras are designed for optimal performance with VMAX® A1 Plus™ DVRs, utilizing existing coax infrastructure to provide a cost-effective, high-quality video surveillance solution.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-V6563WTIR
Product LineStar-Light Plus
Product ModelDWC-V6563WTIR
Product Name5MP Universal HD Over Coax Vandal Outdoor Dome Camera
Product SeriesV6
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Defog, Privacy Masking, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Others
ADI Part Number Replaces6K-V8563TIR
Model Number ReplacesDWC-V8563TIR

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height4.3"
Weight (Approximate)1.98 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.7"
Mount TypeCeiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View122 - 40.8°
HD RecordingYes
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x

Video
Analog Video Signal FormatAHD, HDCVI, HD-TVI

Warranty
Limited Warranty5 Year
