Description

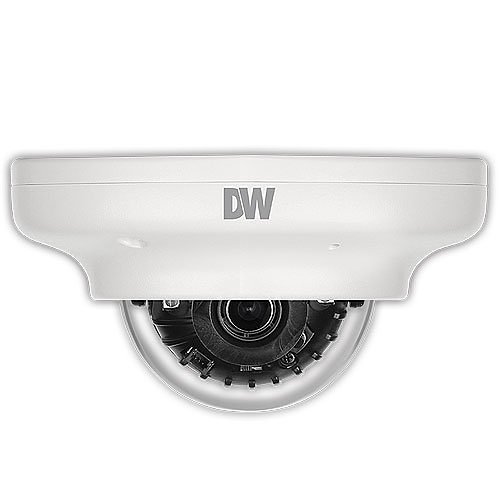

Experience enhanced surveillance with Star-Light Plus™ technology, providing exceptional color images in low-light conditions. Our 5MP Universal HD over Coax® cameras offer superior image clarity and compatibility with HD-Analog, HD-TVI, HD-CVI, as well as traditional analog signals. Designed as ultra low-profile, weather-resistant vandal dome cameras, they come with an IP66 rating and allow for control via the same coaxial cable using UTC. Additionally, these Universal HD over Coax® cameras are optimized to seamlessly integrate with VMAX® A1 Plus™ DVRs, utilizing your existing coaxial infrastructure to deliver a cost-effective, high-resolution video security solution.

Camera
Night Vision Distance50 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-V7553WTIR
Product LineStar-Light Plus
Product ModelDWC-V7553WTIR
Product Name5MP Universal HD Over Coax Ultra Low-profile Camera
Product TypeSurveillance Camera

Lens
Focal Length4 mm
Maximum Focal Length4 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Mirror, Motion Detection

Others
ADI Part Number Replaces6K-V7253, 6K-V7253TIR, 6K-V7253WTIR
Model Number ReplacesDWC-V7253, DWC-V7253TIR, DWC-V7253WTIR

Physical Characteristics
ColorWhite
DurabilityDustproof, Vandal Resistant, Waterproof, Weather Resistant
Form FactorDome
Height2.4"
Weight (Approximate)14.08 oz

Product Information
Diameter4.1"
Mount TypeCeiling Mount, Junction Box Mount, Pendant Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
HD RecordingYes
Lens TypeFixed
Minimum Focal Length4 mm

Warranty
Limited Warranty5 Year
