Brand: Hanwha Vision

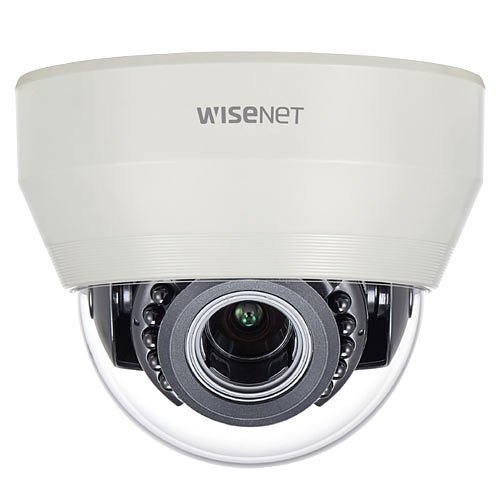

Hanwha HCD-6070R 2MP Analog HD IR Dome Camera, 3.2-10mm Varifocal Lens, Manual Focus, Ivory

Name: Hanwha HCD-6070R 2MP Analog HD IR Dome Camera, 3.2-10mm Varifocal Lens, Manual Focus, Ivory
Brand: Hanwha Vision
SKU: HCD-6070R
Availability: InStock

in stock

In Stock

$152.29

1080p High Definition resolution
0.11 Lux in Color at F1.4, 0 Lux in Black & White with IR LED activated
3.2~10 mm (3.1x) varifocal lens
Day/Night (IR Cut Filter), Wide Dynamic Range (120dB)
Samsung Super Noise Reduction, Motion Detection
Infrared range: 65 feet, IP66 weather resistance, IK10 vandal resistance, Dual power option
Transmission range up to 1640 feet
Hassle-free installation with plug-and-play features, Dual power, RS-485 support

SKU: HCD-6070R Categories: Dome Cameras, HDoC Cameras, Video Surveillance Brand: Hanwha Vision

Description

Experience high-definition surveillance video through existing coaxial infrastructure with the Hanwha Techwin HCD-6070R 2MP Analog HD Dome Camera. Featuring a 1/2.8″ progressive scan CMOS sensor, this surveillance camera transmits 1080p resolution footage at 30 frames per second. Equipped with IR LEDs, it provides night vision capabilities up to 65 feet. The camera includes a 3.2-10mm motorized varifocal lens, offering a horizontal field of view ranging from 110.2° to 32°. Additionally, it supports HD-TVI, HD-CVI, AHD, and CVBS signal outputs for versatile video signaling.

Camera
Night Vision Distance	65 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66
NDAA Compliant	Yes

Display & Graphics
Color Supported	Color
Maximum Video Resolution	1920 x 1080

Environmental Conditions
Maximum Operating Temperature	131°F (55°C)
Minimum Operating Temperature	14°F (-10°C)
Operating Humidity	90%

Exposure
Longest Shutter Speed	1 Second
Shortest Shutter Speed	1/12000 Second

General Information
Brand Name	Hanwha Vision
Manufacturer	Hanwha Vision
Manufacturer Part Number	HCD-6070R
Product Model	HCD-6070R
Product Name	2MP Analog HD IR Indoor Dome
Product Series	HD+
Product Type	Dome Camera

Lens
Focal Length	3.2-10 mm
Lens Included	Yes
Maximum Focal Length	10 mm

Miscellaneous
Features	,, , Dual power, 0.11Lux at F1.4(Color), 0Lux(B/W - IR LED on), 3.2-10mm(3.1x) varifocal lens, Day and Night(ICR), WDR(120dB), Easy installation (Plug and play), Dual power, RS-485, Full HD resolution, IR viewable length - 65 feet,, SSNR, Motion detection, Transmission distance 1640ft
Impact Protection Rating	IK10
Indoor/Outdoor	Indoor, Outdoor

Network & Communication
Remote Management	No

Physical Characteristics
Color	White
Color Family	White
Durability	Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor	Dome
Height	3.9"
Product Color	Ivory
Weight (Approximate)	11.29 oz

Power Description
Input Voltage	12V DC, 24V AC

Product Information
Diameter	4.7"
Mount Type	Box Mount, Ceiling Mount, Pole Mount, Wall Mount

Storage
Recording Formats	Full HD

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	2MP
Field of View	H: 110.2°-32°, V: 55.4°-18°, D: 128.4°-36.6°
HD Recording	Yes
Lens Mount Type	Board Mount
Lens Type	Varifocal
Maximum Aperture	f/1.6
Maximum Frame Rate	30 fps
Minimum Focal Length	3.2 mm
Night Vision	Yes
Night Vision Type	Infrared
Optical Zoom	3.1x

Video
Analog Video Signal Format	AHD, CVBS, CVI, TVI

Warranty
Limited Warranty	3 Year
