Description

The HD+ series supports upscale video resolutions of 4MP (2560 x 1440) and 2MP (1920 x 1080), ensuring exceptional image clarity and detail. These advanced specifications deliver superior performance compared to traditional analog systems while providing the same resolution standards as network systems, all without latency issues. The crystal-clear and vibrant images make the 4MP HD+ series an outstanding choice for medium to large enterprises and projects that demand dependable surveillance solutions. These cameras are capable of transmitting 4MP (QHD) video at 30 frames per second. Additionally, the HD+ series enables the transmission of 4MP/2MP video and audio up to 500 meters over a single coaxial cable, eliminating the limitations of short transmission distances commonly associated with conventional analog products. This technology offers an outstanding solution for comprehensive long-distance security needs.

Camera
Night Vision Distance98 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberHCV-6080R
Product LineWisenet
Product ModelHCV-6080R

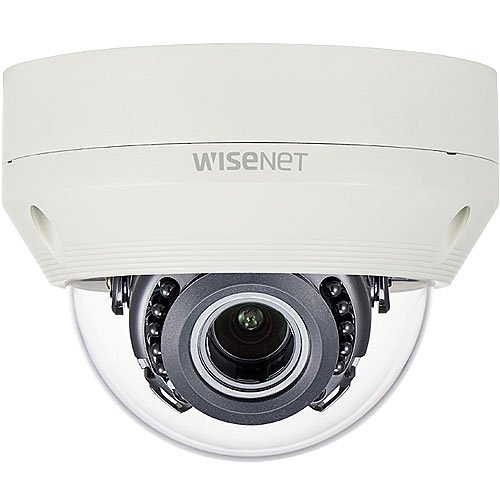

Product Name2MP Analog HD IR Outdoor Dome
Product SeriesHD+
Product TypeSurveillance Camera

Lens
Focal Length3.2-10 mm
Lens IncludedYes
Maximum Focal Length10 mm

Miscellaneous
FeaturesAutomatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementNo

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth5.4"
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorDome
Height4.2"
Product ColorIvory
Weight (Approximate)1.60 lb
Width5.4"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.4"
Length14.5"
Mount TypeBox Mount, Ceiling Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH : 110.2 ?(Wide) ~ 32 ?(Tele) / V : 55.4 ?(Wide) ~ 18 ?(Tele) / D : 128.4 ?(Wide) ~ 36.6 ?(Tele)
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.2 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.1x

Video
Analog Video Signal FormatAHD, CVBS, CVI, TVI

Warranty
Limited Warranty3 Year
