Description

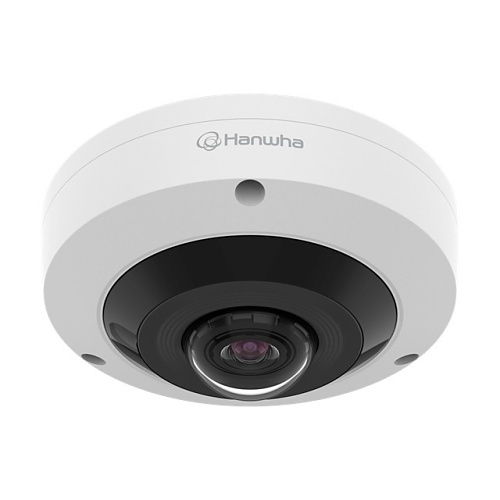

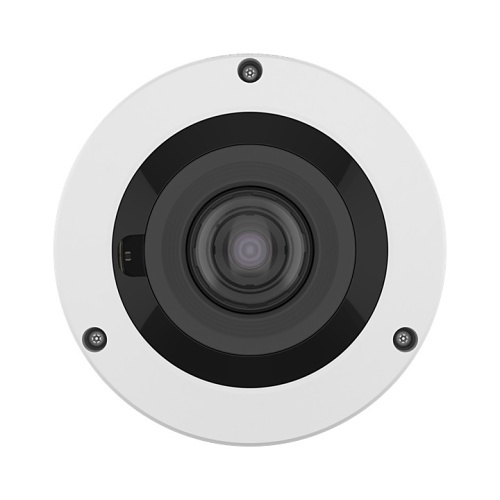

Introducing the Hanwha HCF-8011RV 5MP IR Wisenet HD+ Outdoor Fisheye Camera, specifically engineered to enhance your surveillance solutions. This camera features a 1.16mm fixed focal lens that provides exceptional image clarity, even in challenging low-light environments, with 0.5 Lux in color mode and a remarkable 0.005 Lux in black and white mode. Integrated with cutting-edge technologies such as Day and Night functionality, Backlight Compensation, Wide Dynamic Range, and Smart Stream, it guarantees superior performance across diverse lighting conditions. Benefit from an impressive 10-meter IR viewable distance and robust video transmission capabilities reaching up to 300 meters via 5C2V coaxial cable. Designed to endure harsh weather, it is compliant with IP66 and IK10 standards for durability. Easily power this camera with 24V AC or 12V DC. Upgrade your video surveillance system with the Hanwha HCF-8011RV and achieve unmatched security assurance!

Camera
Night Vision Distance32.81 ft

Certifications
Ingress Protection RatingIP66
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/50000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberHCF8011RV
Product ModelHCF-8011RV
Product NameHCF-8011RV 5MP IR Wisenet HD+ Outdoor Fisheye Camera
Product SeriesHD+
Product TypeNetwork Camera

Lens
Lens IncludedYes
Maximum Focal Length1.16 mm

Miscellaneous
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Wide Dynamic Range (D-WDR), Gain Control, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-HCF8010V
Model Number ReplacesHCF-8010V

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFishEye
Product ColorWhite
Product MaterialAluminum
Weight (Approximate)1.59 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.7"

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH : 180°, V : 180°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.25
Maximum Frame Rate20 fps
Night VisionYes
Night Vision TypeInfrared

Video
Analog Video Signal FormatAHD, CVBS

Warranty
Limited Warranty5 Year
