$8,178.53

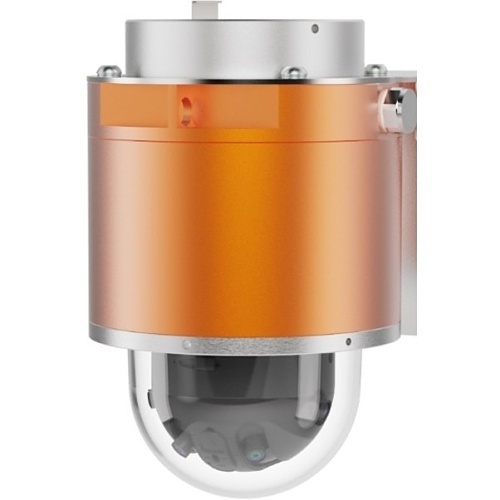

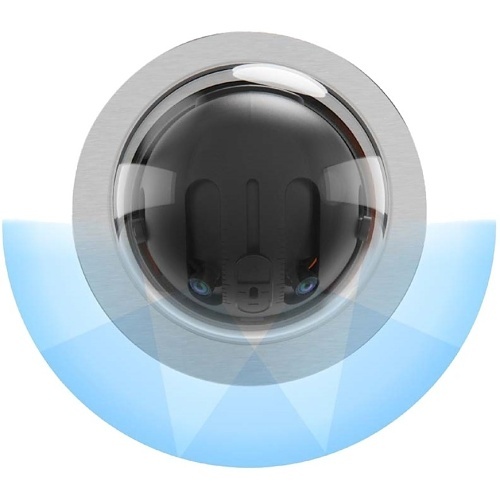

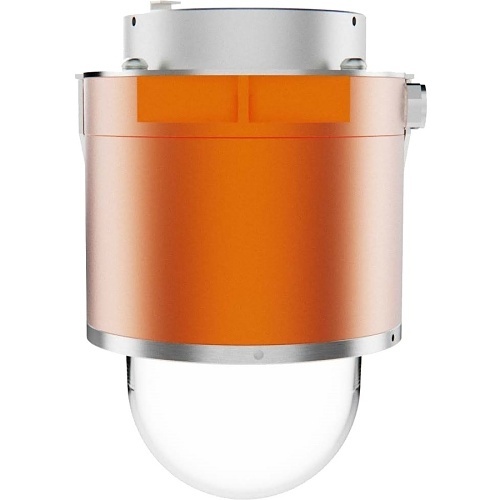

The TNM-P9022EPT3-Z is an advanced camera system certified for cFMus Class I/II/III, Division 1 (Groups: B, C, D, E, F, G) as well as IECEx & ATEX Zone 1/21 (IIB+H2/IIIC) standards. Its robust housing is expertly designed and manufactured in the USA to surpass the highest global industry benchmarks, ensuring safe operation in hazardous or potentially explosive environments and under the most extreme weather conditions.
| Camera | |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 1600 x 1200 |
| Number of Sensors | 4 |
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -4°F |
| Operating Humidity | |
| Exposure | |
| Longest Shutter Speed | 1/12000 Second |
| Minimum Illumination | 0.01 lux |
| Shortest Shutter Speed | 2 Second |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Manufacturer Part Number | TNM-P9022EPT3-Z |
| Product Model | TNM-P9022EPT3-Z |
| Product Name | Explosion Proof Panoramic camera |
| Product Series | T |
| Product Type | Panoramic Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8 mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8 mm |
| Miscellaneous | |
| Features | Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Highlight Compensation (HLC), Microphone In, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, Video Content Analytics, Wide Dynamic Range |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Durability | Corrosion Resistant, Damage Resistant, Dust Resistant, Explosionproof, Waterproof, Weather Resistant |
| Height | 13.67" |
| Weight (Approximate) | 27 lb |
| Width | 8.59" |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Field of View | H: 209°/180°, V: 83° |
| HD Recording | Yes |
| Lens Type | Fixed |
| Maximum Aperture | F1.6 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 2.8 mm |
| Warranty | |
| Limited Warranty | 3 Year |
